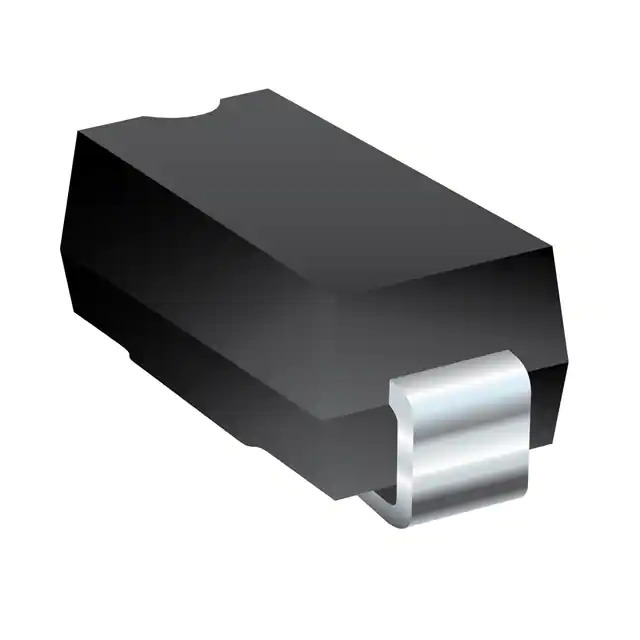

Same model may have multiple batches, images only for reference.

1.5SMBJ22A

Name: 1.5SMBJ22A
Brand: Bourns Inc.
SKU: 1362002
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1.5SMBJ22A
Manufacturer	Bourns Inc.
Catalog	TVS - Diodes
Description	DIO TVS VRWM 22V 1500W UNIDIR SM / 35.5V Clamp 42.3A Ipp Tvs Diode Surface Mount SMB (DO-214AA)
Datasheet	1.5SMBJ22A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Bourns Inc.
Series	Automotive, AEC-Q101, 1.5SMBJ
Package	Tape & Reel
Product Status	Active
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	22V
Voltage - Breakdown (Min)	24.4V
Voltage - Clamping (Max) @ Ipp	35.5V
Current - Peak Pulse (10/1000µs)	42.3A
Power - Peak Pulse	1500W (1.5kW)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	SMB (DO-214AA)
Base Product Number	1.5SMBJ
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1362002-1.5SMBJ22A
Ultra Librarian 3D Model	Ultra Librarian 1.5SMBJ22A CAD Model

Description

The Bourns Inc. 1362002-1.5SMBJ22A is a TVS diode from the 1.5SMBJ series.

Application: Transient Voltage Suppression
Reverse Standoff Voltage: 22V
Breakdown Voltage: 24.4V
Peak Pulse Current: 42.3A
Peak Power: 1500W (1.5kW)
Package: DO-214AA, SMB
Mounting Type: Surface Mount
REACH Compliance: Unaffected
ECCN: EAR99
