Same model may have multiple batches, images only for reference.

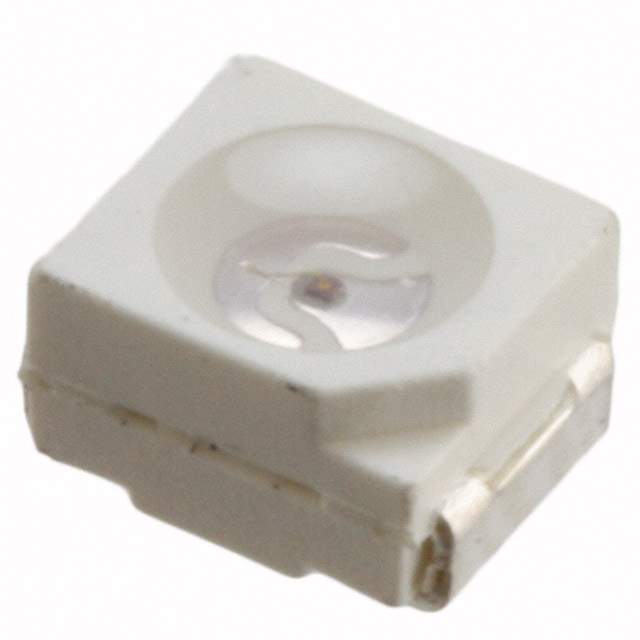

SMTL2-PGC Real Image
Same model may have multiple batches, images only for reference.

SMTL2-PGC

Part No SMTL2-PGC
Manufacturer Bivar Inc.
Catalog LED Indication - Discrete
Description LED GREEN CLEAR 2PLCC SMD / Green 557nm LED Indication - Discrete 2V 2-PLCC
Datasheet
SMTL2-PGC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Bivar Inc.
Package Tape & Reel (TR)
Color Green
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 11mcd
Lens Style Round with Flat Top
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 557nm
Package / Case 2-PLCC
Supplier Device Package 2-PLCC
Dimension 3.20mm L x 2.80mm W
Height (Max) 2.10mm
Base Product Number SMTL2
Standard Package 2,000
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242263-SMTL2-PGC
Ultra Librarian 3D Model Ultra Librarian SMTL2-PGC CAD Model

Description

The SMTL2-PGC is a standard configuration green LED from Bivar Inc.

  • Lens Style: 2-PLCC round with a flat top lens style
  • Lens: Colorless lens and a clear lens transparency
  • Viewing Angle: 120 degrees
  • Millicandela Rating: 11mcd
  • Voltage Rating: 2V
  • Current: 20mA
  • Wavelength at Dominant: 557nm
  • Package: Tape and reel
  • Standard Package: 2,000
  • Dimension: 3.20mm L x 2.80mm W
  • Series: SMTL2 series
