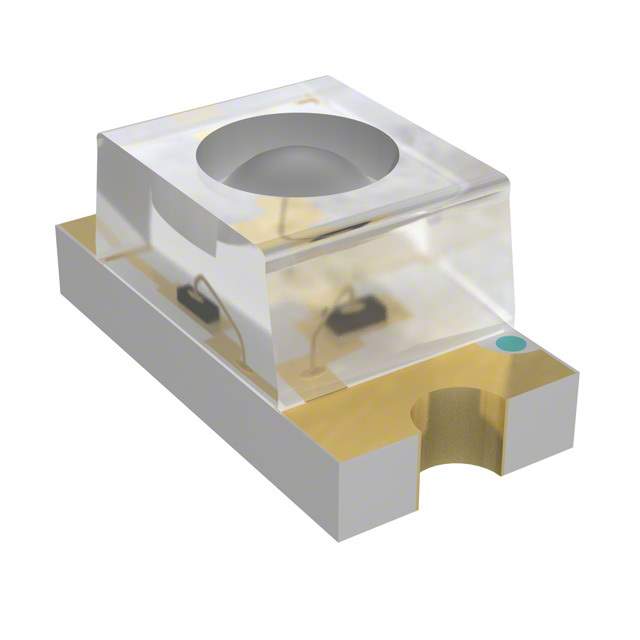

SM1206NYC-IL Real Image
Same model may have multiple batches, images only for reference.

SM1206NYC-IL

Part No SM1206NYC-IL
Manufacturer Bivar Inc.
Catalog LED Indication - Discrete
Description LED YELLOW CLEAR 1206 SMD / Yellow 592nm LED Indication - Discrete 2V 1206 (3216 Metric)
Datasheet
SM1206NYC-IL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Bivar Inc.
Package Tape & Reel
Color Yellow
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 1000mcd
Lens Style Round with Flat Top
Lens Size 1.10mm Dia
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 30°
Mounting SMD (SMT)
Wavelength - Dominant 592nm
Wavelength - Peak 590nm
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 3.20mm L x 1.60mm W
Height (Max) 1.40mm
Base Product Number SM1206
Other Names 492-1947-6,492-1947-2,492-1947-1
Standard Package 3,000
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242301-SM1206NYC-IL
Ultra Librarian 3D Model Ultra Librarian SM1206NYC-IL CAD Model

Description

Bivar Inc. offers the SM1206NYC-IL LED indication discrete product.

  • Color: Yellow
  • Configuration: Standard
  • Mounting: SMD (SMT)
  • Viewing Angle: 30 degrees
  • Lens Style: Round with a flat top
  • Lens Size: 1.10mm diameter
  • Standard Package: 3,000
  • Packaging: Tape and Reel
