Same model may have multiple batches, images only for reference.

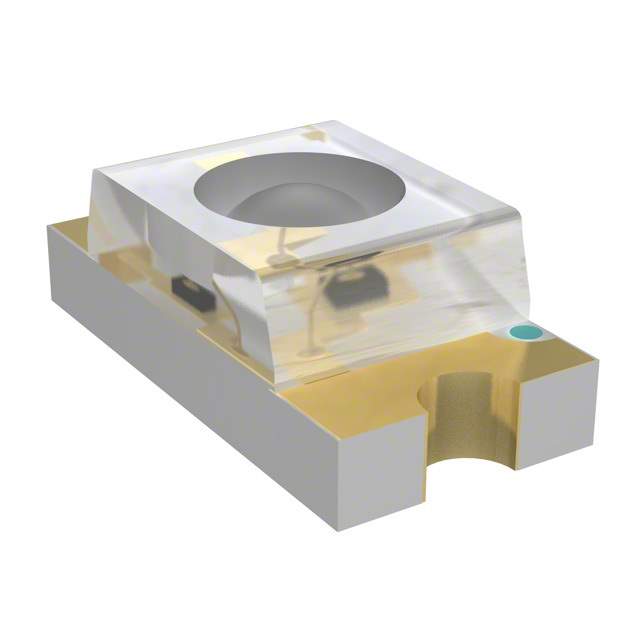

SM1206HC Real Image
Same model may have multiple batches, images only for reference.

SM1206HC

Part No SM1206HC
Manufacturer Bivar Inc.
Catalog LED Indication - Discrete
Description LED RED CLEAR 1206 SMD / Red 643nm LED Indication - Discrete 1.8V 1206 (3216 Metric)
Datasheet
SM1206HC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Bivar Inc.
Package Tape & Reel
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 15mcd
Lens Style Rectangle with Flat Top
Lens Size 2.00mm x 1.60mm
Voltage - Forward (Vf) (Typ) 1.8V
Current - Test 20mA
Viewing Angle 140°
Mounting SMD (SMT)
Wavelength - Dominant 643nm
Wavelength - Peak 660nm
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 3.20mm L x 1.60mm W
Height (Max) 1.10mm
Base Product Number SM1206
Other Names SM1206HC,492-1698-6,492-1698-1,492-1698-2
Standard Package 3,000
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242313-SM1206HC
Ultra Librarian 3D Model Ultra Librarian SM1206HC CAD Model

Description

The SM1206HC is a LED indication electronic component designed for surface mount applications.

  • Dominant Wavelength: 643nm
  • Peak Wavelength: 660nm
  • Voltage: 1.8V
  • Current: 20mA
  • Millicandela Rating: 15mcd
  • Viewing Angle: 140°
  • Package: Tape and Reel
  • Standard Package: 3,000
  • Dimensions: 3.20mm L x 1.60mm W x 1.10mm H
