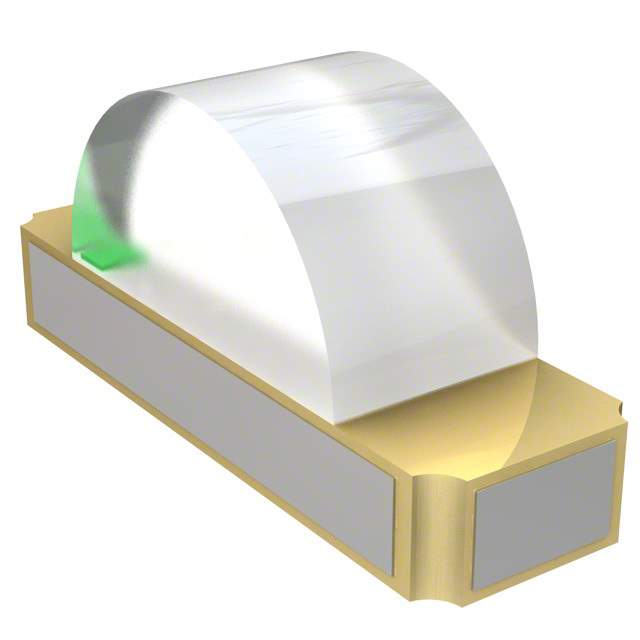

SM1204SRC Real Image
Same model may have multiple batches, images only for reference.

SM1204SRC

Part No SM1204SRC
Manufacturer Bivar Inc.
Catalog LED Indication - Discrete
Description LED RED CLEAR 1204 SMD R/A / Red 640nm LED Indication - Discrete 2.1V 1204 (3210 Metric)
Datasheet
SM1204SRC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Bivar Inc.
Package Tape & Reel
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 48mcd
Lens Style Rectangle with Domed Top
Lens Size 2.00mm x 1.00mm
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle 110°
Mounting Type Surface Mount, Right Angle
Wavelength - Dominant 640nm
Wavelength - Peak 655nm
Package / Case 1204 (3210 Metric)
Supplier Device Package 1204
Dimension 3.20mm L x 1.00mm W
Height (Max) 1.00mm
Base Product Number SM1204
Other Names 492-1236-1,492-1236-2,492-1236-6
Standard Package 3,000
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242311-SM1204SRC
Ultra Librarian 3D Model Ultra Librarian SM1204SRC CAD Model

Description

The Bivar Inc. SM1204SRC is a surface mount, right-angle LED indication component with a viewing angle of 110° and a millicandela rating of 48mcd.

  • Voltage-Forward: 2.1V
  • Wavelength-Dominant: 640nm
  • Wavelength-Peak: 655nm
  • Packaging: Tape and Reel
  • Dimension: 3.20mm L x 1.00mm W
  • Height: 1.00mm
  • Lens Style: Rectangle with a domed top
  • Lens Size: 2.00mm x 1.00mm
  • Series: 1204 (3210 Metric)
  • Standard Package: 3,000
