Same model may have multiple batches, images only for reference.

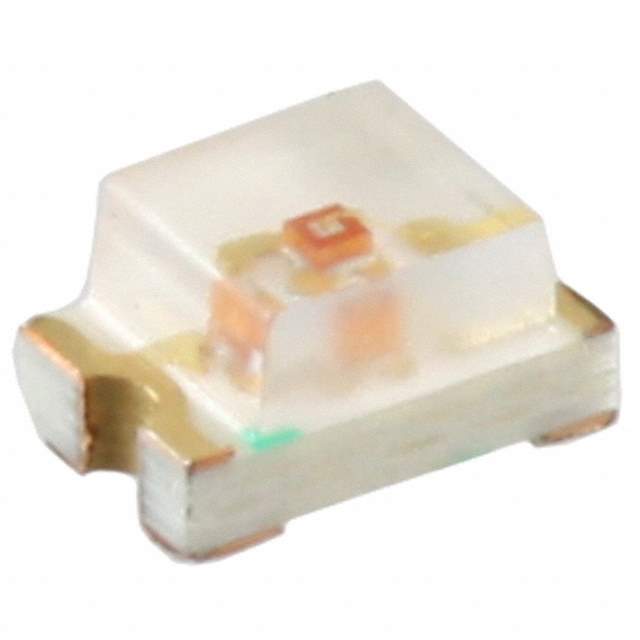

SM0805AC Real Image
Same model may have multiple batches, images only for reference.

SM0805AC

Part No SM0805AC
Manufacturer Bivar Inc.
Catalog LED Indication - Discrete
Description LED AMBER CLEAR 0805 SMD / Amber 607nm LED Indication - Discrete 2V 0805 (2012 Metric)
Datasheet
SM0805AC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Bivar Inc.
Package Tape & Reel
Color Amber
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 6mcd
Lens Style Rectangle with Flat Top
Lens Size 1.40mm x 1.20mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 130°
Mounting SMD (SMT)
Wavelength - Dominant 607nm
Wavelength - Peak 610nm
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 2.00mm L x 1.20mm W
Height (Max) 1.10mm
Base Product Number SM0805
Other Names 492-1695-6,SM0805AC,492-1695-1,492-1695-2
Standard Package 3,000
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242351-SM0805AC
Ultra Librarian 3D Model Ultra Librarian SM0805AC CAD Model

Description

The SM0805AC is an amber LED with a viewing angle of 130° and a millicandela rating of 6mcd. This device is designed to operate with a forward voltage of 2V and a current test of 20mA.

  • Package: Tape and reel
  • Standard Package: 3,000 units
  • Manufacturer: Bivar Inc.
