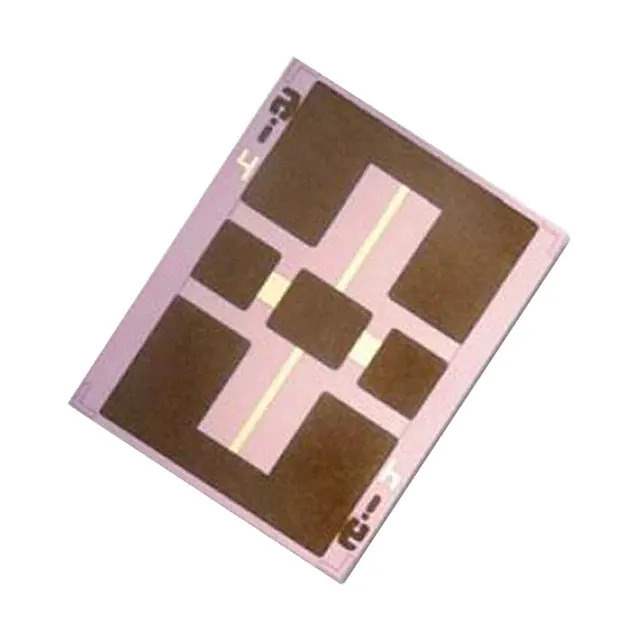

ATN3580-03 Real Image
Same model may have multiple batches, images only for reference.

ATN3580-03

Part No ATN3580-03
Manufacturer Skyworks Solutions Inc.
Catalog Attenuators
Description RF ATTENUATOR 3DB MODULE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Attenuators
Mfr Skyworks Solutions Inc.
Series ATN3580
Package Tray
Product Status Active
Attenuation Value 3dB
Frequency Range 100 MHz ~ 40 GHz
Power (Watts) 1W
Package / Case Module
Base Product Number ATN3580
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 566789-ATN3580-03
Ultra Librarian 3D Model Ultra Librarian ATN3580-03 CAD Model

Description

The Attenuator 566789-ATN3580-03 is a high-quality component designed for RF and wireless applications.

  • Category: RF and Wireless - Attenuators
  • Package: Tray package
  • Series: ATN3580
  • Power Rating: 1W
  • Frequency Range: 100 MHz to 40 GHz
  • Attenuation Value: 3dB
  • Package Type: Module
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8542.39.0001
  • Manufacturer: Skyworks Solutions Inc.
  • Product Status: Active
