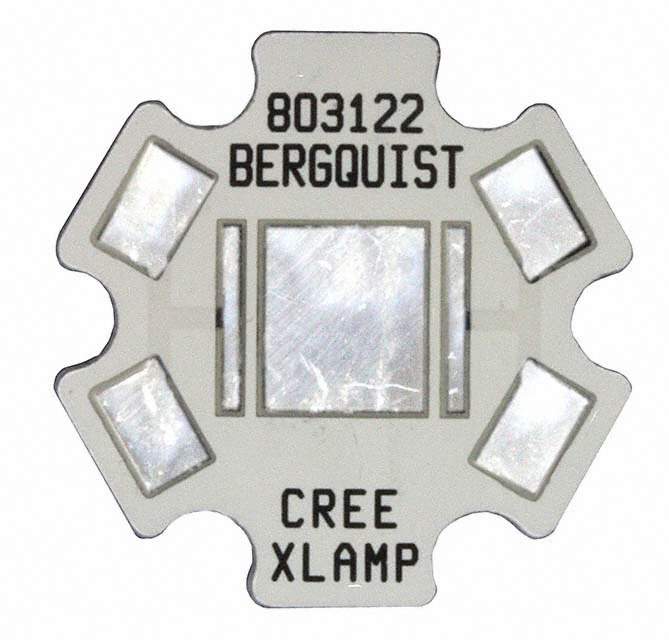

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics - LED Thermal Products
Mfr Bergquist
Series Thermal Clad® IMS®
Package 1 per Pkg
Product Status Obsolete
Type Thermal Clad Board
For Use With/Related Products Cree XR-E
Shape Star
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8534.00.0095
Win Source Part Number 858320-803122
Ultra Librarian 3D Model Ultra Librarian 803122 CAD Model

Description

The Thermal Clad® IMS® Thermal Clad Board is a high-quality electronic component designed for use with Cree XR-E LED.

  • Category: Optoelectronics - LED Thermal Products
  • Series: Thermal Clad® IMS®
  • Shape: Star
  • Quantity per Package: 1
  • ECCN: EAR99
  • Status: Obsolete
  • Win Source Part Number: 858320-803122
