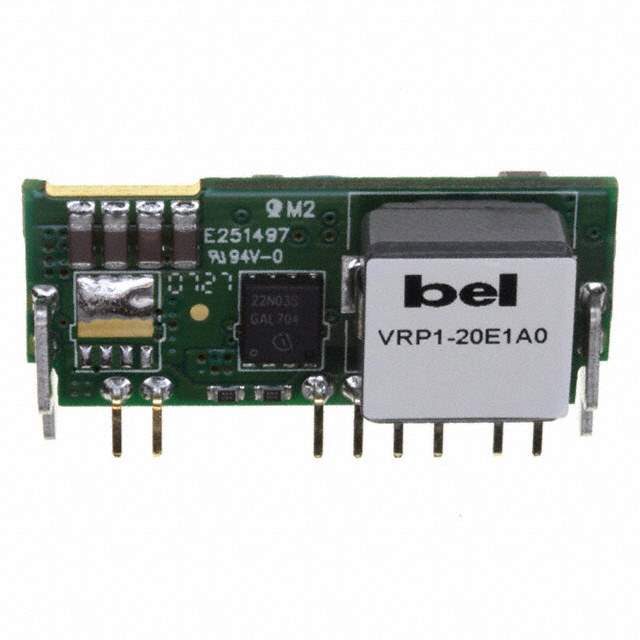

Same model may have multiple batches, images only for reference.

VRP1-20E1A0G

Name: VRP1-20E1A0G
Brand: Bel Power Solutions
SKU: 1007557
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	VRP1-20E1A0G
Manufacturer	Bel Power Solutions
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 0.591-5.1V 100W / Non-Isolated PoL Module DC DC Converter 1 Output 0.591 ~ 5.1V 20A 4.5V - 13.8V Input
Datasheet	VRP1-20E1A0G Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Bel Power Solutions
Series	VRP1
Package	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	13.8V
Voltage - Output 1	0.591 ~ 5.1V
Current - Output (Max)	20A
Power (Watts)	100 W
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	0°C ~ 70°C
Efficiency	94%
Mounting Type	Through Hole
Package / Case	8-SIP Module
Dimension	1.45" L x 0.40" W x 0.61" H (36.8mm x 10.2mm x 15.5mm)
Control Features	Enable, Active High
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	507-1387,VRP1-20E1A0
Standard Package	32
Win Source Part Number	1007557-VRP1-20E1A0G
Ultra Librarian 3D Model	Ultra Librarian VRP1-20E1A0G CAD Model

Alternative Products

Description

The VRP1-20E1A0G is a non-isolated POL module manufactured by Bel Power Solutions.

Type: Non-Isolated POL Module
Power Output: 100W
Voltage Input Range: 4.5V to 13.8V
Package: 8-SIP Module
Mounting Technology: Through-Hole
Voltage Output Range: 0.591V to 5.1V
Current Output: 20A
Features: Remote On/Off, Overcurrent Protection (OCP), Overvoltage Protection (OVP), and Short Circuit Protection (SCP)
ECCN: EAR99
REACH: Compliant
