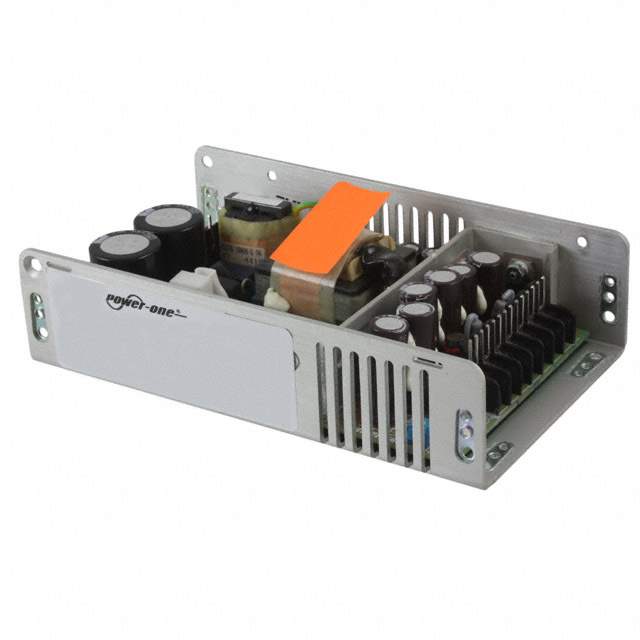

MAP80-1012G Real Image
Same model may have multiple batches, images only for reference.

MAP80-1012G

Part No MAP80-1012G
Manufacturer Bel Power Solutions
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 12V 80W  /  Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
Datasheet
MAP80-1012G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr Bel Power Solutions
Series MAP80 (80W)
Package Bulk
Type Open Frame
Number of Outputs 1
Voltage - Input 90 ~ 264 VAC
Voltage - Output 1 12V
Current - Output 1 7.5 A
Power (Watts) 80W
Applications ITE (Commercial)
Voltage - Isolation 2.6 kV
Efficiency 80%
Temperature Range - Operating 0°C ~ 70°C (With Derating)
Features Adjustable Output, Universal Input
Mounting Type Chassis Mount
Dimension 7.20" L x 4.20" W x 1.80" H (182.9mm x 106.7mm x 45.7mm)
Approval Agency CE
Minimum Load Required Yes
Base Product Number MAP80
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.6018
Other Names MAP801012G,2266-MAP80-1012G,179-2355
Standard Package 10
Win Source Part Number 1179313-MAP80-1012G
Ultra Librarian 3D Model Ultra Librarian MAP80-1012G CAD Model

Description

The Bel Power Solutions MAP80-1012G is an 80W open frame AC DC converter that has an adjustable output and universal input.

  • Power: 80W
  • Application: ITE (Commercial)
  • Supply and Demand Status: Short
  • Manufacturer: Bel Power Solutions
  • Win Source Part Number: 1179313-MAP80-1012G
  • Voltage Input Range: 90 ~ 264 VAC
  • Isolation Voltage: 2.6 kV
  • Output Voltage: 12V
  • Efficiency: 80 percent
  • Minimum Load: Required
  • Mount: Chassis
