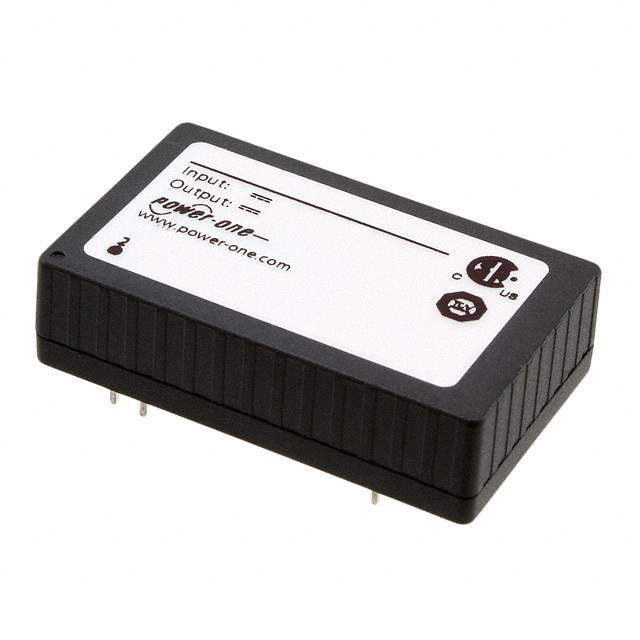

20IMX4-05-8KG Real Image
Same model may have multiple batches, images only for reference.

20IMX4-05-8KG

Part No 20IMX4-05-8KG
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 4W / Isolated Module, Conformal Coated DC DC Converter 1 Output 5V 700mA 8.4V - 36V Input
Datasheet
20IMX4-05-8KG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Bel Power Solutions
Series Melcher IMX4 (4W)
Package Bulk
Type Isolated Module, Conformal Coated
Number of Outputs 1
Voltage - Input (Min) 8.4V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 700mA
Power (Watts) 4 W
Voltage - Isolation 1.2 kV
Applications ITE (Commercial) , Railway
Features OTP, OVP, SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 81%
Mounting Type Through Hole
Package / Case 24-DIP Module, 13 Leads
Size / Dimension 1.30" L x 0.79" W x 0.33" H (33.0mm x 20.1mm x 8.4mm)
Base Product Number 20IMX4
Standard Package 30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1352094-20IMX4-05-8KG
Ultra Librarian 3D Model Ultra Librarian 20IMX4-05-8KG CAD Model

Description

The Melcher IMX4 (4W) is a power supply board mount DC DC converter that comes in an isolated module, conformal coated type.

  • Features: OTP, OVP, SCP
  • Packaging: Bulk
  • Size/Dimension: 1.30" L x 0.79" W x 0.33" H (33.0mm x 20.1mm x 8.4mm)
  • Application: ITE (Commercial) and Railway
  • Standard Package: 30
  • Power Output: 4W
  • Voltage Isolation: 1.2 kV
  • Number of Outputs: 1
  • Current Output (Max): 700mA
  • Input Voltage: 8.4V to 36V
  • Output Voltage: 5V
  • Efficiency: 81%
  • Mounting Type: Through Hole
  • Package/Case: 24-DIP Module, 13 Leads
  • Operating Temperature: -40°C ~ 85°C
