Same model may have multiple batches, images only for reference.

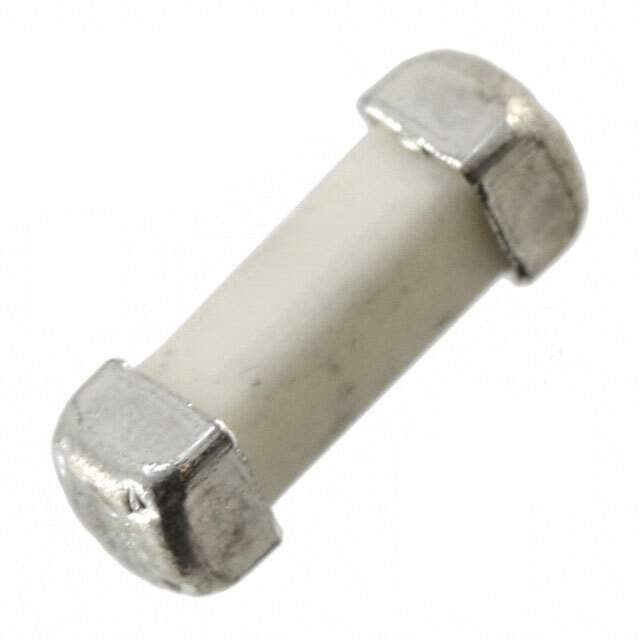

SMM 15 Real Image
Same model may have multiple batches, images only for reference.

SMM 15

Part No SMM 15
Manufacturer Bel Fuse Inc.
Catalog Fuses
Datasheet
SMM 15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bel Fuse Inc.
Series SMM
Package Tape & Reel
Product Status Obsolete
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 15 A
Voltage Rating - AC 250 V
Voltage Rating - DC 72 V
Response Time Medium Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 100A AC, 130A DC
Melting I2t 110
Approval Agency CE, cURus
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.386" L x 0.120" W x 0.125" H (9.80mm x 3.05mm x 3.18mm)
DC Cold Resistance 0.0036 Ohms
Other Names 507-1950-2,SMM15,507-1950-1,507-1950-6,0678-9150-M2
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302276-SMM 15
Ultra Librarian 3D Model Ultra Librarian SMM 15 CAD Model

Description

The Bel Fuse Inc. SMM 15 is a circuit protection fuse with a medium blow response time.

  • Breaking Capacity: 100A AC and 130A DC @ rated voltage
  • Melting I2t: 110
  • DC Cold Resistance: 0.0036 Ohms
  • Mounting: surface mount device
  • Package/Case: 2-SMD, square end block
  • Temperature Range: -55°C to 125°C
  • Status: This product is obsolete
  • Approval Agency: CE and cURus
