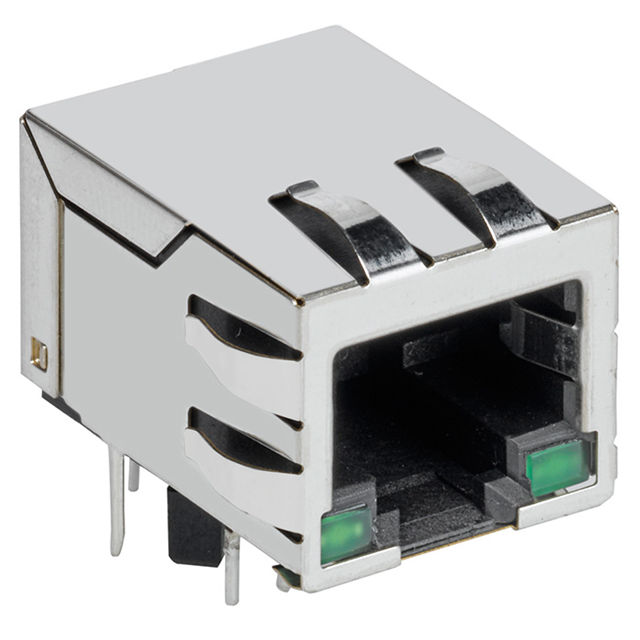

Same model may have multiple batches, images only for reference.

SI-60158-F

Name: SI-60158-F
Brand: Bel Fuse Inc.
SKU: 1333858
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SI-60158-F
Manufacturer	Bel Fuse Inc.
Catalog	Modular Connectors
Description	CONN JACK 1PORT 100 BASE-T PCB / 1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
Datasheet	SI-60158-F Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer	Bel Fuse Inc.
Packaging	Tray
Connector Type	RJ45
Number of Ports	1
Number of Rows	1
Applications	10/100 Base-T, AutoMDIX
Mounting	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
LED Color	Green - Green
Number of Cores per Jack	2
Shielding	Shielded, EMI Finger
Features	Board Lock
Tab Direction	Down
Contact Material	Copper Alloy
Contact Finish	Gold
Temperature Range - Operating	-40°C ~ 85°C
Contact Finish Thickness	50.0µin (1.27µm)
Shield Material	Copper Alloy
Housing Material	Thermoplastic
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	SI-60158-F-ND,507-SI-60158-F
Standard Package	50
Win Source Part Number	1333858-SI-60158-F
Ultra Librarian 3D Model	Ultra Librarian SI-60158-F CAD Model

Alternative Products

Description

Bel Fuse Inc. offers a reliable and high-quality modular connector jack with magnetics under the Win Source Part Number 1333858-SI-60158-F.

Category: Connector
Packaging: Tray
Board Lock: Yes
Connector Type: RJ45
Number of Rows: 1
Termination: Soldered
Contact Finish: Gold
Contact Finish Thickness: 50.0µin (1.27µm)
Contact Material: Copper Alloy
Housing Material: Thermoplastic
Applications: 10/100 Base-T, AutoMDIX
Orientation: 90-degree angle (right)
Number of Ports: 1
Standard Package: 50
Mounting: Through Hole
LED Color: Green-Green
Number of Cores per Jack: 2
Shield Material: Copper Alloy
Temperature Range: -40°C to 85°C
ECCN: EAR99
ROHS3 Compliant: Yes
