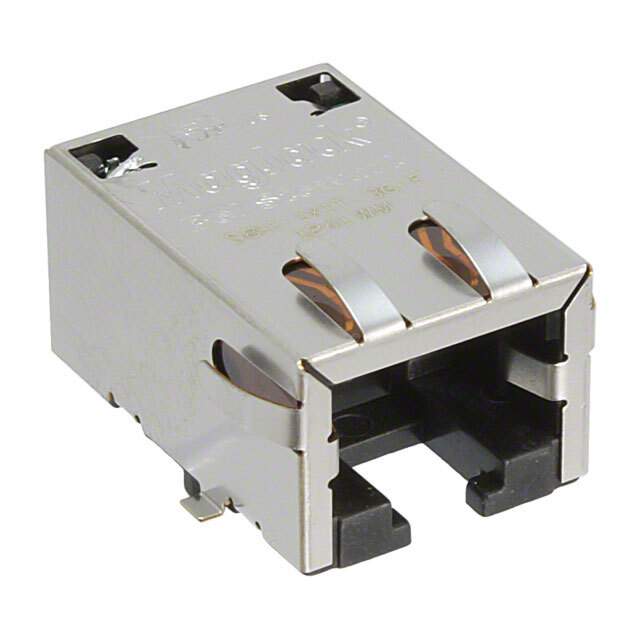

S811-1X1T-36-F

Name: S811-1X1T-36-F
Brand: Bel Fuse Inc.
SKU: 1294063
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	S811-1X1T-36-F
Manufacturer	Bel Fuse Inc.
Catalog	Modular Connectors
Datasheet	S811-1X1T-36-F Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Modular Connectors - Jacks With Magnetics
Mfr	Bel Fuse Inc.
Series	MagJack®
Package	Tape & Reel
Connector Type	RJ45
Number of Ports	1
Number of Rows	1
Applications	10/100 Base-T, AutoMDIX
Mounting	SMD (SMT)
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	0.502" (12.75mm)
LED Color	Does Not Contain LED
Number of Cores per Jack	4
Shielding	Shielded, EMI Finger
Features	Board Guide, Solder Retention
Tab Direction	Down
Contact Finish	Gold
Temperature Range - Operating	-40°C ~ 85°C
Contact Finish Thickness	50.0µin (1.27µm)
Shield Material	Copper Alloy
Housing Material	Phenolic; Polyamide (PA), Nylon
Other Names	S8111X1T36-F,507-1730-6,507-1730-1,S811-1X1T-36-F,507-1730-2,507-1730,S8111X1T36F
Standard Package	175
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1294063-S811-1X1T-36-F
Ultra Librarian 3D Model	Ultra Librarian S811-1X1T-36-F CAD Model

Alternative Products

Description

The Bel Fuse Inc. S811-1X1T-36-F is a shielded RJ45 connector with magnetics.

Orientation: 90° Angle
Tab Direction: Down
Number of Rows: Single
Number of Ports: 1
Cores per Jack: 4
Contact Finish: Gold
Contact Finish Thickness: 50.0µin (1.27µm)
Height Above Board: 0.502" (12.75mm)
Shielding: EMI Finger
Housing Material: Phenolic; Polyamide (PA), Nylon
Shield Material: Copper Alloy
Applications: 10/100 Base-T and AutoMDIX
Packaging: Tape and Reel
Standard Package: 175
