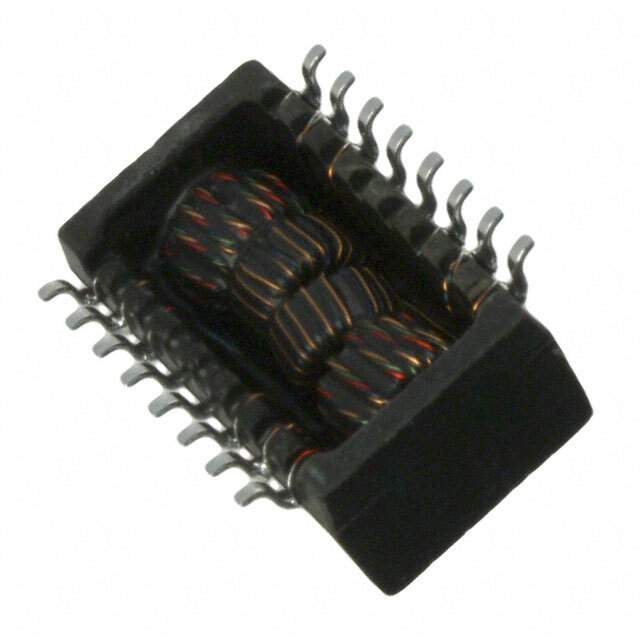

S558-5999-03-F Real Image
Same model may have multiple batches, images only for reference.

S558-5999-03-F

Part No S558-5999-03-F
Manufacturer Bel Fuse Inc.
Catalog Pulse Transformers
Description PULSE XFMR 1CT:1CT 420UH 550UH / 420µH LAN Pulse Transformer 1CT:1CT Surface Mount
Datasheet
S558-5999-03-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Bel Fuse Inc.
Package Tape & Reel
Transformer Type LAN
Inductance 420µH
Mounting SMD (SMT)
Dimension 0.485" L x 0.285" W (12.32mm x 7.24mm)
Height - Seated (Max) 0.225" (5.72mm)
Other Names 507-1472-2,507-1472-1,507-1472,Y558599903-F,S558599903F,507-1472,507-1472-6
Standard Package 900
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1232775-S558-5999-03-F
Ultra Librarian 3D Model Ultra Librarian S558-5999-03-F CAD Model

Description

Bel Fuse Inc. presents a highly efficient and reliable LAN transformer, suitable for a wide range of applications.

  • Supply and Demand: Balanced supply and demand status
  • Standard Package: 900
  • Category: Pulse transformers
  • ECCN: EAR99 compliance
  • MSL level: 2 (1 Year)
