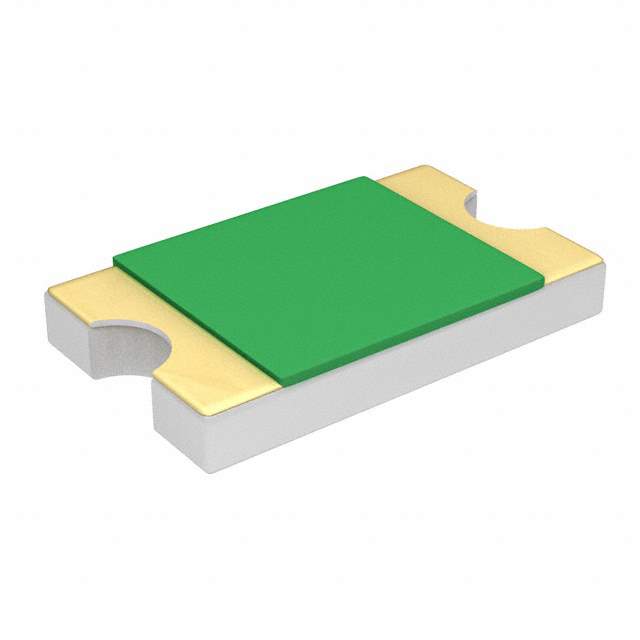

Same model may have multiple batches, images only for reference.

0ZCK0050AF2E

Name: 0ZCK0050AF2E
Brand: Bel Fuse Inc.
SKU: 1301629
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	0ZCK0050AF2E
Manufacturer	Bel Fuse Inc.
Catalog	PTC Resettable Fuses
Datasheet	0ZCK0050AF2E Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	Bel Fuse Inc.
Series	0ZCK
Package	Tape & Reel
Type	Polymeric
Voltage - Max	9V
Current - Max	100 A
Current - Hold (Ih) (Max)	500 mA
Current - Trip (It)	1 A
Time to Trip	100 ms
Resistance - Initial (Ri) (Min)	150 mOhms
Resistance - Post Trip (R1) (Max)	850 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Ratings	AEC-Q200
Mounting	SMD (SMT)
Package / Case	0805 (2012 Metric), Concave
Dimension	0.087" L x 0.053" W (2.20mm x 1.35mm)
Thickness (Max)	0.035" (0.90mm)
Approval Agency	cURus, TUV
Other Names	507-2075-2,507-2075-1,507-2075-6
Standard Package	3,000
MSL Level	2A (4 Weeks)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1301629-0ZCK0050AF2E
Ultra Librarian 3D Model	Ultra Librarian 0ZCK0050AF2E CAD Model

Alternative Products

Description

The PTC Resettable Fuse from the 0ZCK series is a polymeric type electronic component with Win Source Part Number 1301629-0ZCK0050AF2E.

Package: Tape and Reel
Standard Package: 3,000
Mounting: SMD (SMT)
Ratings: AEC-Q200
Voltage Maximum: 9V
Current Maximum: 100A
Current Hold (Ih): 500mA
Current Trip (It): 1A
Time to Trip: 100ms
Package/Case: 0805 (2012 Metric), Concave
Operating Temperature Range: -40°C to 85°C
Application: Automotive, industrial, and consumer electronics
