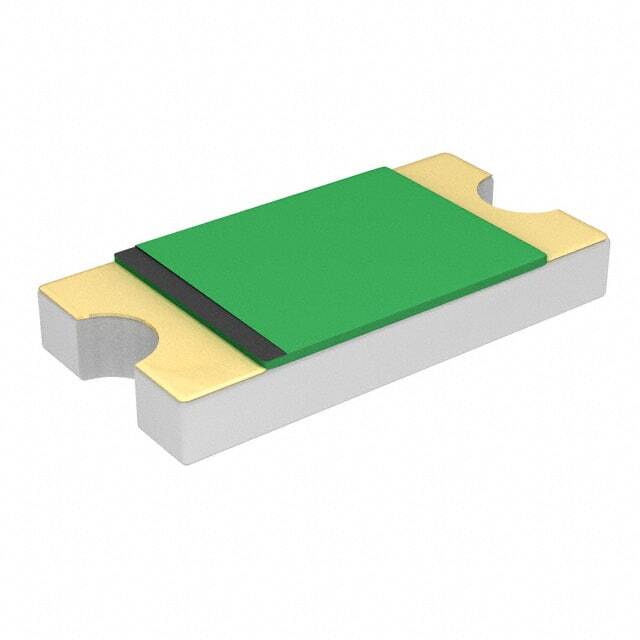

Same model may have multiple batches, images only for reference.
0ZCJ0050AF2E Bel Fuse Inc.
Same model may have multiple batches, images only for reference.

0ZCJ0050AF2E

Part No 0ZCJ0050AF2E
Manufacturer Bel Fuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 24V 500MA 1206  /  Polymeric PTC Resettable Fuse 24V 500 mA Ih Surface Mount 1206 (3216 Metric), Concave
Datasheet
0ZCJ0050AF2E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Bel Fuse Inc.
Series 0ZCJ
Package Tape & Reel
Type Polymeric
Voltage - Max 24V
Current - Max 100 A
Current - Hold (Ih) (Max) 500 mA
Current - Trip (It) 1 A
Time to Trip 100 ms
Resistance - Initial (Ri) (Min) 150 mOhms
Resistance - Post Trip (R1) (Max) 750 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric), Concave
Dimension 0.128" L x 0.065" W (3.25mm x 1.65mm)
Thickness (Max) 0.047" (1.20mm)
Approval Agency AEC-Q200, cURus, TUV
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Names 507-1803-1,507-1803-2,507-1803-6
Standard Package 3,000
Win Source Part Number 963179-0ZCJ0050AF2E
Ultra Librarian 3D Model Ultra Librarian 0ZCJ0050AF2E CAD Model

Description

The 0ZCJ0050AF2E is an electronic component manufactured by Bel Fuse Inc.

  • Type: PTC resettable fuse
  • Win Source Part Number: 963179-0ZCJ0050AF2E
  • Package: 3,000
  • Rated: AEC-Q200
  • Maximum Voltage: 24V
  • Maximum Current: 100A
