Same model may have multiple batches, images only for reference.

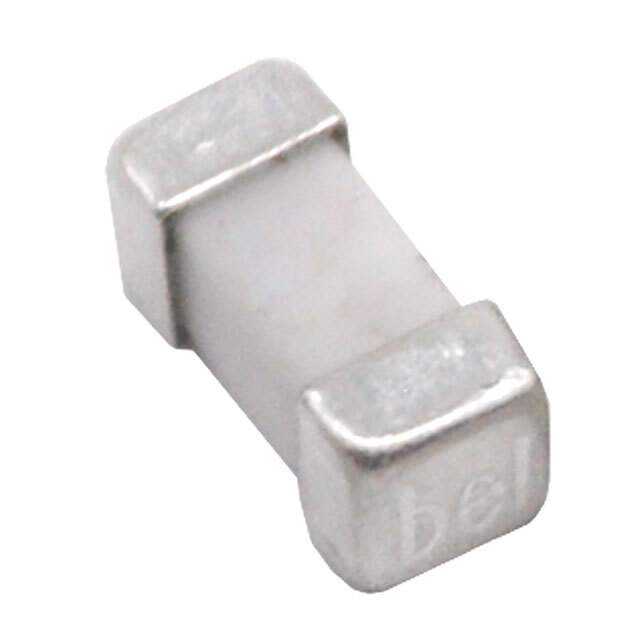

0680L7000-05 Real Image
Same model may have multiple batches, images only for reference.

0680L7000-05

Part No 0680L7000-05
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE BRICK SMD 2410 SLOW 7A / 7 A 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Datasheet
0680L7000-05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bel Fuse Inc.
Series 0680L
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 7 A
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Slow Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 50A AC, 100A DC
Melting I2t 68
Approval Agency AEC-Q200, CE, cURus
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.240" L x 0.100" W x 0.100" H (6.10mm x 2.54mm x 2.54mm)
DC Cold Resistance 0.012 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Other Names 507-0680L7000-05TR,507-0680L7000-05CT,507-0680L7000-05DKR
Standard Package 5,000
Win Source Part Number 1171521-0680L7000-05
Ultra Librarian 3D Model Ultra Librarian 0680L7000-05 CAD Model

Description

This electronic component is a fuse belonging to the 0680L series and has a Win Source Part Number of 1171521-0680L7000-05.

  • Package: Tape and reel
  • Mounting: Board mountable
  • Voltage Rating: 125V AC and 125V DC
  • Response Time: Slow blow
  • Breaking Capacity: 50A AC and 100A DC @ rated voltage
  • Melting I2t: 68
  • DC Cold Resistance: 0.012 Ohms
  • Standard Package: 5,000
  • Mounting Type: SMD (SMT)
  • Temperature Range: -55°C to 125°C
  • ECCN: EAR99
  • REACH: Unaffected
  • Current Rating: 7A
  • Approvals: AEC-Q200, CE, and cURus
