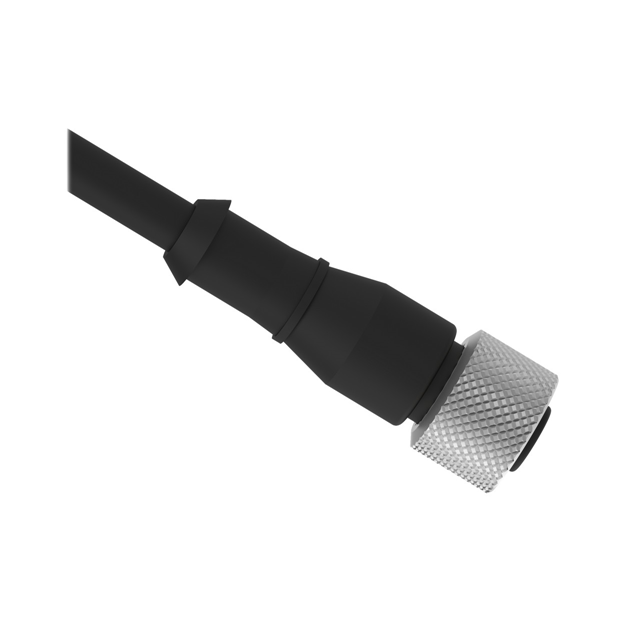

MQDC20-515 Real Image
Same model may have multiple batches, images only for reference.

MQDC20-515

Part No MQDC20-515
Manufacturer Banner Engineering Corporation
Catalog Circular Cable Assemblies
Description CBL 5POS FMALE TO WIRE 15' / Cable Assembly 15.00' (4.57m)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Circular Cable Assemblies
Mfr Banner Engineering Corporation
Package Box
1st Connector Type Plug
1st Connector Gender Female Sockets
1st Connector Number of Positions 5
1st Connector Number of Positions Loaded All
1st Connector Shell Size - Insert M12
1st Connector Orientation Keyed
1st Connector Mounting Type Free Hanging (In-Line)
2nd Connector Type Wire Leads
Length 15.00' (4.57m)
Assembly Configuration Standard
Cable Type Round
Cable Material Polyvinyl Chloride (PVC)
Color Black
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Usage Industrial Environments
Base Product Number MQDC
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8544.42.9090
Other Names 2170-MQDC20-515,79870
Standard Package 1
Win Source Part Number 1050710-MQDC20-515
Ultra Librarian 3D Model Ultra Librarian MQDC20-515 CAD Model

Description

The Banner Engineering Corporation MQDC20-515 is a circular cable assembly that is used in various industrial environments.

  • Ingress Protection: It has an ingress protection rating of IP67, making it dust tight and waterproof.
  • Length: It has a length of 15.00' (4.57m)
  • Shielding: and has a shielding of unshielded.
  • First Connector Type: The Banner Engineering Corporation MQDC20-515 has a first connector type of plug, with a female socket and five positions loaded.
  • First Connector Shell Size: It has a first connector shell size of M12 and is keyed.
  • Second Connector Type: The second connector type is wire leads
  • Assembly Configuration: and the assembly configuration is standard.
  • Description: The Banner Engineering Corporation MQDC20-515 is a reliable and efficient cable assembly that ensures the smooth operation of industrial machinery.
