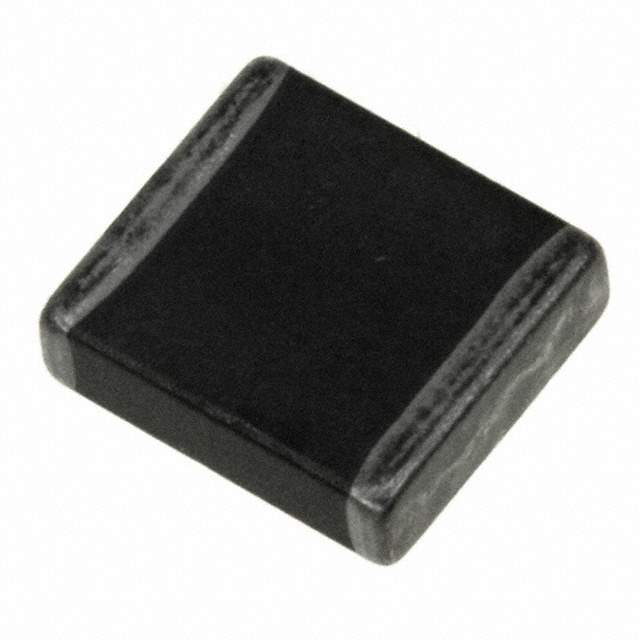

VC15PA0160KBA Real Image
Same model may have multiple batches, images only for reference.

VC15PA0160KBA

Part No VC15PA0160KBA
Manufacturer AVX Corporation
Catalog TVS - Varistors, MOVs
Description VARISTOR 24.5V 1.2KA 2220
Datasheet
VC15PA0160KBA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer AVX Corporation
Packaging Reel - TR
Status Active
Varistor Voltage (Min) 22.05V
Varistor Voltage (Typ) 24.5V
Varistor Voltage (Max) 26.95V
Current - Surge 1.2kA
Energy 5.8J
Number of Circuits 1
Maximum AC Volts 14VAC
Maximum DC Volts 16VDC
Capacitance @ Frequency 16000pF @ 1kHz
Temperature Range - Operating -55°C to 125°C (TA)
Mounting Surface Mount, MLCV
Dimension 2220 (5750 Metric)
Win Source Part Number 1116940-VC15PA0160KBA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VC15PA0160KBA CAD Model

Description

The VC15PA0160KBA is a surface mount, MLCV varistor from AVX Corporation that has a capacitance of 16000pF @ 1kHz and a varistor voltage range of 22.05V to 26.95V.

  • Manufacturer: AVX Corporation
  • Mounting Type: Surface Mount
  • Type: MLCV Varistor
  • Capacitance: 16000pF @ 1kHz
  • Varistor Voltage Range: 22.05V to 26.95V
  • Maximum AC Voltage: 14VAC
  • Maximum DC Voltage: 16VDC
  • Current Surge: 1.2kA
  • Energy: 5.8J
  • Temperature Range: -55°C to 125°C (TA)
  • Application: Circuit Protection
  • Package: Reel - TR
  • Quantity per Package: 1
  • Supply and Demand: Balance
  • Popularity: Medium
  • HTSUS: N/A
