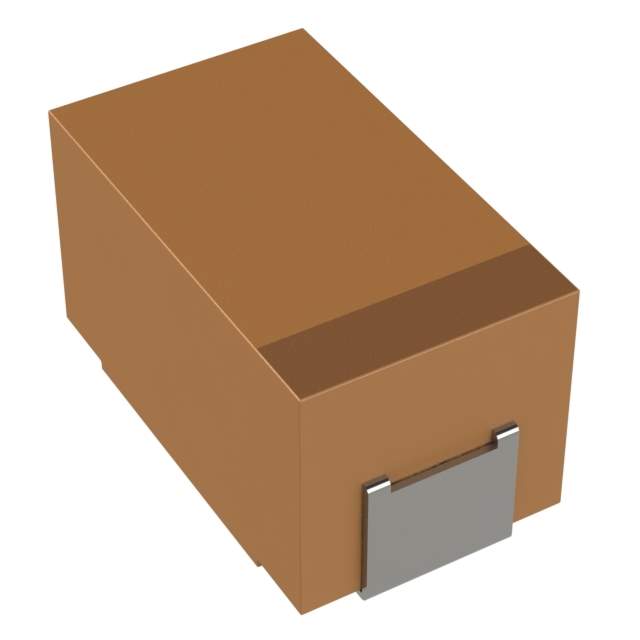

The TPSE476K025R0100 is a solid tantalum surface mount capacitor from AVX Corporation, part of the TPSE series. This capacitor is designed for applications requiring stable capacitance, low ESR (Equivalent Series Resistance), and high reliability. It's commonly used in power management, decoupling, and filtering circuits.

Applications

• Power supply filtering and decoupling
• DC-DC converters
• Portable electronic devices
• Industrial control systems
• General purpose circuitry

Features

• Surface mount design for automated assembly
• Solid tantalum construction for high reliability
• Low ESR minimizes power loss and improves performance
• Stable capacitance over a wide temperature range
• RoHS compliant

Benefits

• Improved power efficiency in circuits due to low ESR
• Long lifespan and high reliability in demanding applications
• Compact size allows for dense board designs
• Easy integration into automated manufacturing processes
• Environmentally friendly due to RoHS compliance

Specifications

The TPSE476K025R0100 has a capacitance of 47 μF (microfarads) with a ±10% tolerance. Its rated voltage is 25 VDC. The ESR is specified at 1.0 Ohm. The operating temperature range is -55°C to +125°C. It is housed in a standard EIA 2917 case size. The combination of a high capacitance value, a moderate voltage rating, and a low ESR makes this capacitor suitable for applications requiring efficient energy storage and delivery, while maintaining stable performance over a wide range of operating conditions. It's an excellent choice for decoupling and filtering in sensitive electronic circuits.
