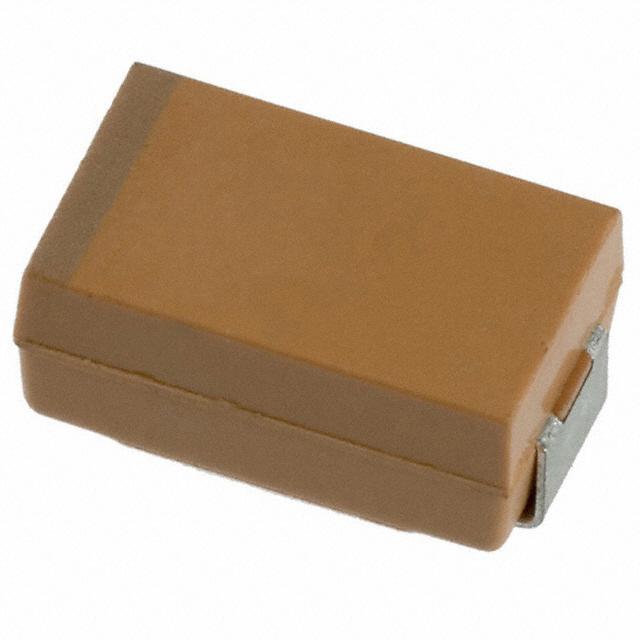

The TPSD226M025R0150 is a surface mount tantalum capacitor manufactured by AVX Corporation as part of their TPSD series. This capacitor is designed for applications requiring high capacitance, low ESR, and reliable performance.

Applications

• Power supply filtering and decoupling
• DC-DC converters
• Portable electronic devices
• Industrial control systems
• Medical equipment

Features

• Capacitance: 22μF
• Voltage Rating: 25V
• ESR (Equivalent Series Resistance): 0.150 Ohms
• Tolerance: ±20%
• Operating Temperature Range: -55°C to +125°C
• Case Size: D Case
• Termination Style: Surface Mount
• RoHS Compliant

Benefits

• Reduces ripple and noise in power supplies.
• Offers efficient energy storage.
• Stable performance over a wide temperature range.
• Small footprint due to its compact D case size.
• Reliable and long-lasting performance.

Technical Specifications

The TPSD226M025R0150 is made with a tantalum anode and manganese dioxide cathode. The very low ESR of 0.150 Ohms makes it an excellent choice for power supply filtering applications. It is packaged on tape and reel for automated assembly. The capacitor is also RoHS compliant, making it environmentally friendly.

This capacitor is commonly chosen for its high performance characteristics in demanding applications. The 25V voltage rating offers a good margin of safety for many electronic circuits. Its surface mount design allows for efficient assembly on modern PCBs. The specified capacitance tolerance is ±20%.
