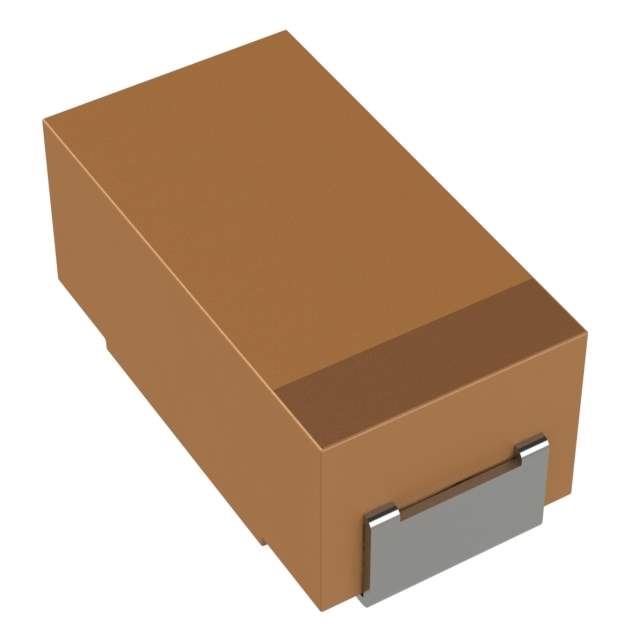

TPSC226M020R0100 Real Image
Same model may have multiple batches, images only for reference.

TPSC226M020R0100

Part No TPSC226M020R0100
Manufacturer AVX Corporation
Catalog Tantalum Capacitors
Description CAP TANT 22UF 20V 20% 2312
Datasheet
TPSC226M020R0100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Packaging Reel - TR
Status Active
Capacitance 22μF
Tolerance ±20%
Voltage Rating 20V
Type Molded
ESR 100 mOhm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.236" L x 0.126" W (6.00mm x 3.20mm)
Height - Seated (Max) 0.110" (2.80mm)
Manufacturer Size Code C
Features General Purpose
Win Source Part Number 048156-TPSC226M020R0100
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TPSC226M020R0100 CAD Model

Description

AVX Corporation's molded type capacitor is a general-purpose capacitor designed to operate in a temperature range of -55°C to 125°C.

  • Capacitance: 22μF
  • Tolerance: ±20%
  • ESR: 100 mOhm
  • Manufacturer Size Code: C
  • Voltage Rating: 20V
  • Package: 0.236" L x 0.126" W (6.00mm x 3.20mm)
  • Mounting: SMD technology
  • Halogen-Free: Compliant
  • Widely Used in: Applications such as power supplies, filters, and decoupling circuits
  • Estimated EOL Date: Not available
