Same model may have multiple batches, images only for reference.

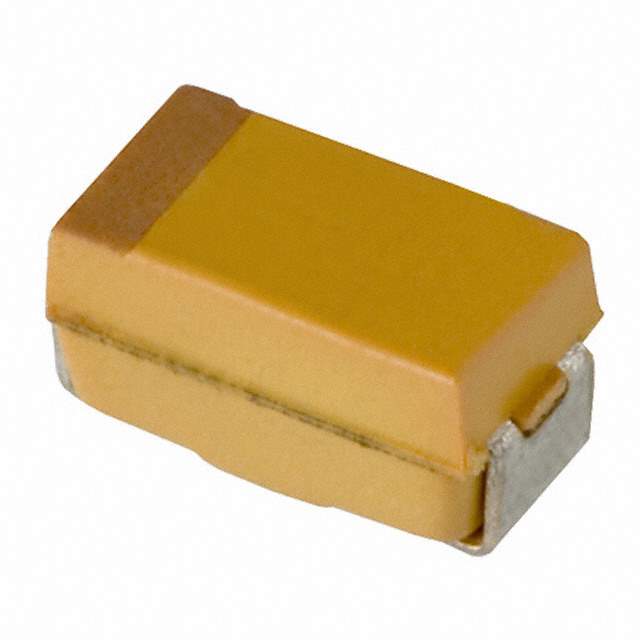

TPSA475K020R1800 Real Image
Same model may have multiple batches, images only for reference.

TPSA475K020R1800

Part No TPSA475K020R1800
Manufacturer AVX Corporation
Catalog Tantalum Capacitors
Description CAP TANT 4.7UF 20V 10% 1206 / Cap Tant Solid 4.7uF 20V A CASE 10% (3.2 X 1.6 X 1.6mm) Inward L SMD 3216-18 1.8 Ohm 125°C T/R
Datasheet
TPSA475K020R1800 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Series TPS
Packaging Reel package
Capacitance 4.7μF
Tolerance ±10%
Voltage Rating DC 20V
Type Molded
ESR (Equivalent Series Resistance) 1.8 Ohm
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Package 1206 (3216 Metric)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Maximum) 0.071" (1.80mm)
Manufacturer Size Code A
Features General
Win Source Part Number 798283-TPSA475K020R1800
Popularity Medium
Supply and Demand Status Balance
Family Name TPS
Introduction Date May 05, 2009
ECCN EAR99
Country of Origin Czech Republic
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian TPSA475K020R1800 CAD Model

Description

AVX Corporation's 4.7μF capacitor is a molded type capacitor.

  • Voltage Rating: 20V
  • Tolerance: ±10%
  • ESR: 1.8 Ohm
  • Operating Temperature Range: -55°C to 125°C
  • Package: 1206 (3216 Metric)
  • Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Height: 0.071" (1.80mm)
  • Applications: General
  • Estimated EOL Date: 2028
  • Package Quantity: 2000
  • MSL Level: 1 (Unlimited)
