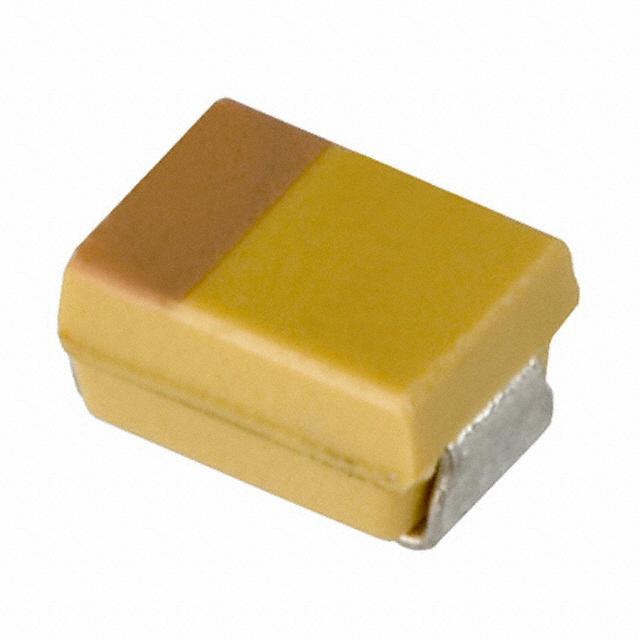

The TAJR336K010RNJ is a surface-mount solid tantalum capacitor manufactured by AVX Corporation. It's designed for general-purpose applications requiring stable capacitance and low ESR (Equivalent Series Resistance) within a compact form factor.

Applications

• Decoupling in power supplies.
• Filtering in audio and signal processing circuits.
• Energy storage in low-power devices.
• Bypass capacitors in digital circuits.
• General electronics applications across various industries, including consumer electronics, industrial control, and telecommunications.

Features

• Case Size: R Case
• Capacitance: 33µF (Microfarads)
• Voltage Rating: 10V (Volts DC)
• Tolerance: ±10%
• ESR (Equivalent Series Resistance): Low ESR (refer to datasheet for specific value)
• Termination: Surface Mount (SMD/SMT)
• Operating Temperature: -55°C to +125°C (typical)
• RoHS Compliance: Yes, compliant with RoHS standards.

Benefits

• Stable Capacitance: Provides consistent performance over a wide range of temperatures and frequencies.
• Compact Design: The R case size is ideal for space-constrained applications.
• Long Operational Life: Solid tantalum construction ensures high reliability and longevity.
• Low ESR: Reduces power dissipation and improves circuit efficiency.
• Easy to Assemble: Surface-mount design allows for automated assembly processes.

Additional Details

The TAJR336K010RNJ utilizes tantalum pentoxide as its dielectric material, offering excellent electrical properties. The surface mount configuration allows for efficient board assembly and reduced parasitic inductance. It is important to consult the AVX datasheet for precise ESR values, ripple current ratings, and other performance specifications. Voltage derating is recommended for extended lifespan and increased reliability in demanding applications.
