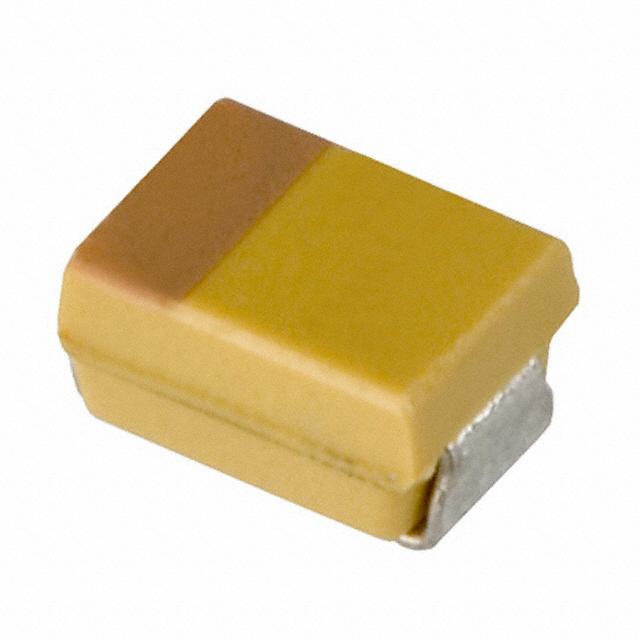

The TAJR336K006RNJ is a surface-mount solid tantalum capacitor from AVX Corporation, known for its reliability and performance in various electronic applications. It's designed for general-purpose use, providing stable capacitance and low ESR (Equivalent Series Resistance) in a compact package.

Applications

• Decoupling capacitors in power circuits.
• Filtering in signal processing circuits.
• Timing circuits where stable capacitance is needed.
• DC-DC converters for voltage stabilization.
• General-purpose applications in consumer electronics, industrial equipment, and telecommunications.

Features

• Case Size: R Case
• Capacitance: 33µF (Microfarads)
• Voltage Rating: 6.3V (Volts DC)
• Tolerance: ±10%
• ESR (Equivalent Series Resistance): Specified Low ESR (consult datasheet for exact value)
• Termination: Surface Mount (SMD, SMT)
• Operating Temperature Range: Typically -55°C to +125°C
• RoHS Compliant: Yes, compliant with Restriction of Hazardous Substances directive.

Benefits

• Stable Performance: Tantalum capacitors offer stable capacitance and low ESR over a wide temperature range.
• Compact Size: The R case size allows for high-density board designs.
• Long Lifespan: Solid tantalum construction provides a long and reliable operating life.
• Low ESR: Minimizes power losses and improves circuit efficiency.
• High Ripple Current Capability: Suitable for applications with high ripple currents (refer to datasheet).

Additional Details

The TAJR336K006RNJ utilizes a solid tantalum electrolytic as its dielectric material, which contributes to its stable electrical characteristics. The surface mount design enables automated assembly and reduces manufacturing costs. This capacitor is commonly used in applications where a reliable and compact energy storage element is required. Proper derating of voltage is recommended to ensure optimal lifespan and reliability. For specific ESR, ripple current, and other performance characteristics, consult the official AVX datasheet for the TAJR series.
