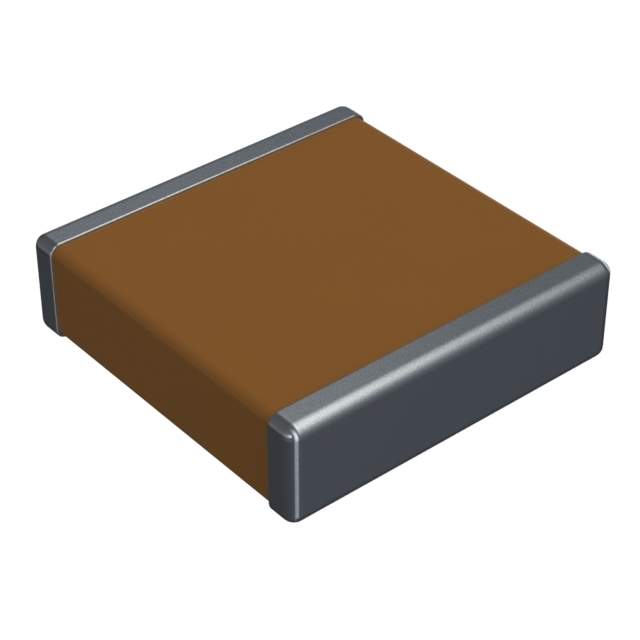

3640KA311JAT9A Real Image
Same model may have multiple batches, images only for reference.

3640KA311JAT9A

Part No 3640KA311JAT9A
Manufacturer AVX Corporation
Catalog Ceramic Capacitors
Description CAP CER 310PF 5KV NP0 3640 / Cap Ceramic 310pF 5000V C0G 5% Pad SMD 3640 125°C Low ESR Bulk
Datasheet
3640KA311JAT9A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Packaging Bulk
Capacitance 310pF
Tolerance ±5%
Voltage Rating DC 5000V (5kV)
Temperature Coefficient C0G, NP0
Operating Temperature Range -55°C ~ 125°C
Features High Voltage
Applications General
Mounting Surface Mount, MLCC
Package 3640 (9110 Metric)
Dimension 0.360" L x 0.402" W (9.14mm x 10.20mm)
Thickness (Maximum) 0.100" (2.54mm)
Win Source Part Number 777956-3640KA311JAT9A
Popularity Medium
Supply and Demand Status Limited
Family Name 3640
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian 3640KA311JAT9A CAD Model

Description

The AVX Corporation 777956-3640KA311JAT9A is a surface mount capacitor with a capacitance of 310pF and a tolerance of ±5%.

  • Temperature Coefficient: C0G, NP0
  • Voltage Rating DC: 5000V (5kV)
  • Package: 3640 (9110 Metric)
  • Operating Temperature: -55°C to 125°C
  • Dimension: 0.360" L x 0.402" W (9.14mm x 10.20mm)
  • Maximum Thickness: 0.100" (2.54mm)
  • Compliance: Halogen-Free
