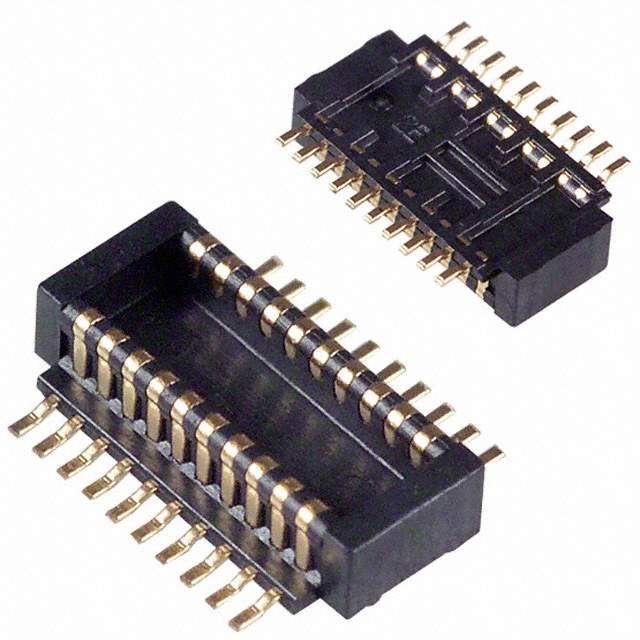

Same model may have multiple batches, images only for reference.

145602020000829+

Name: 145602020000829+
Brand: AVX Corporation
SKU: 415762
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	145602020000829+
Manufacturer	AVX Corporation
Catalog	Rectangular Connectors
Description	CONN PLUG BD/BD 20POS .4MM SMD
Datasheet	145602020000829+ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	AVX Corporation
Packaging	Reel - TR
Status	Active
Connector Type	Plug, Outer Shroud Contacts
Number of Positions	20
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting	SMD (SMT)
Contact Finish	Gold
Contact Finish Thickness	3.9μin (0.10μm)
Mated Stacking Heights	1.5mm, 1.7mm, 2mm, 2.8mm
Height Above Board	0.047" (1.20mm)
Win Source Part Number	1001473-145602020000829+
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	2k pcs
Ultra Librarian 3D Model	Ultra Librarian 145602020000829+ CAD Model

Alternative Products

Description

The AVX Corporation 145602020000829+ connector is a plug, outer shroud contacts type connector with 20 positions and a pitch of 0.016" (0.40mm).

Type: Plug, Outer Shroud Contacts
Positions: 20
Pitch: 0.016" (0.40mm)
Contact Finish: Gold
Contact Finish Thickness: 3.9μin (0.10μm)
Mated Stacking Heights: 1.5mm, 1.7mm, 2mm, 2.8mm
Height Above Board: 0.047" (1.20mm)
Supply and Demand: Balanced
Package Quantity: 2k pcs
