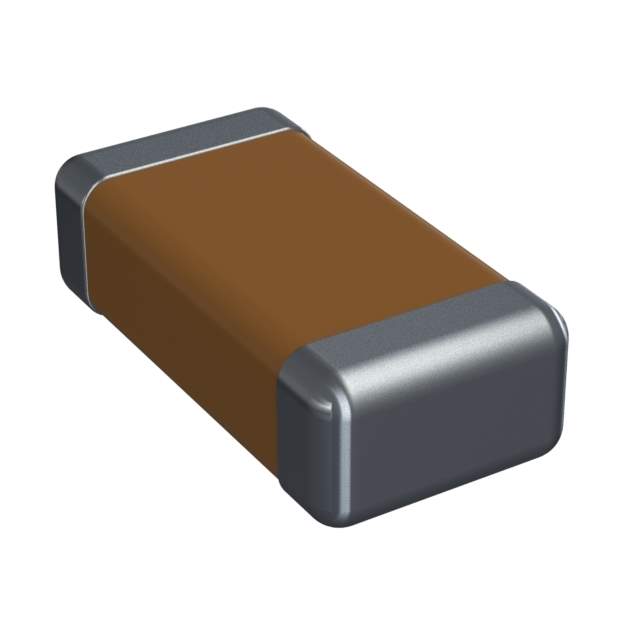

The AVX 12068A101JAT2D is a ceramic capacitor primarily utilized in a variety of electronic circuits for functions like decoupling, bypassing, and filtering. This capacitor is designed with a surface-mount configuration (SMD) for efficient assembly onto printed circuit boards. Manufactured by AVX, a global leader in passive electronic components, it ensures reliability and consistent performance.

Applications

• Decoupling Capacitors: Used to reduce noise and voltage fluctuations in power supplies, especially close to active devices like microcontrollers.
• Bypass Capacitors: Employed to bypass AC signals to ground, preventing them from interfering with other parts of the circuit.
• Filtering Circuits: Integrated into low-pass and high-pass filters to remove unwanted frequency components from signals.
• Timing Circuits: Used in timing applications, such as in oscillators and timers, where stable capacitance is required.
• General-Purpose Applications: Suitable for a broad range of applications where a reliable and stable capacitor is needed.

Features

• Surface Mount Technology (SMD): Facilitates automated assembly on printed circuit boards, reducing manufacturing time and costs.
• High Capacitance Stability: Maintains stable capacitance over a wide range of temperatures and applied voltages.
• Low Equivalent Series Resistance (ESR): Minimizes power losses and improves circuit efficiency.
• RoHS Compliant: Complies with the Restriction of Hazardous Substances directive, making it environmentally friendly.
• Compact Size: The 1206 package size allows for high-density mounting on circuit boards.

Benefits

• Improved Circuit Performance: Effective decoupling and bypassing reduce noise and improve overall circuit stability.
• Efficient Assembly: Surface mount design enables fast and efficient automated assembly.
• Reduced Power Losses: Low ESR minimizes power dissipation, improving the efficiency of the circuit.
• Environmentally Friendly: RoHS compliance ensures that the capacitor is free from hazardous substances.
• Compact Design: Small size allows for high-density mounting, enabling smaller and more compact electronic devices.

Additional Details

Capacitance: 100 pF (101)

Voltage Rating: 100V (8A)

Dielectric Material: C0G (NP0)

Capacitance Tolerance: ±5% (J)

Operating Temperature Range: -55°C to +125°C

Package Size: 1206 (3.2mm x 1.6mm)

The AVX 12068A101JAT2D is a high-quality ceramic capacitor that offers stable performance and reliability for a variety of electronic applications. Its surface mount design, combined with its electrical characteristics, make it a versatile choice for modern electronic circuits.
