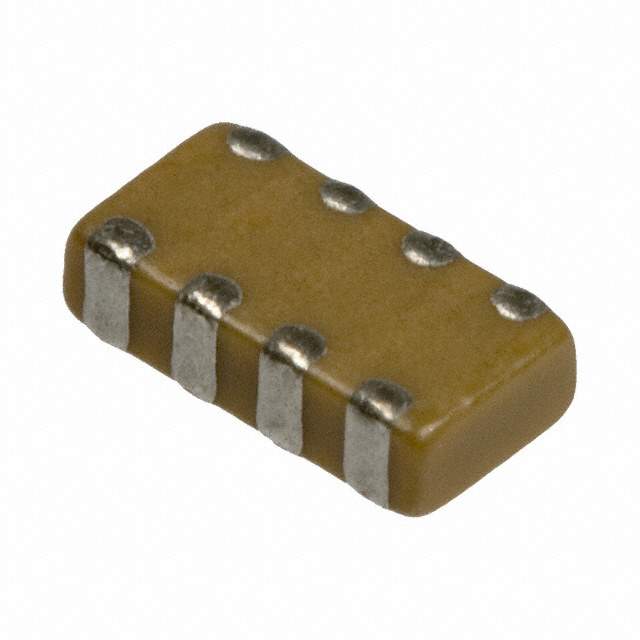

W3A45C102KAT2A Real Image
Same model may have multiple batches, images only for reference.

W3A45C102KAT2A

Part No W3A45C102KAT2A
Manufacturer AVX Corp/Kyocera Corp
Catalog Capacitor Networks, Arrays
Description CAP ARRAY 1000PF 50V X7R 0612  /  1000pF Isolated Capacitor 4 Array 50 V X7R 1206 (3216 Metric)
Datasheet
W3A45C102KAT2A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Capacitor Networks, Arrays
Mfr KYOCERA AVX
Series IPC
Package Tape & Reel
Capacitance 1000pF
Tolerance ±10%
Voltage - Rated 50 V
Dielectric Material Ceramic
Number of Capacitors 4
Circuit Type Isolated
Temperature Coefficient X7R
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric)
Supplier Device Package 0612 (1632 Metric)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.053" (1.35mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Names 478-11424-2,478-11424-1,W3A45C102KAT2A-ND,478-11424-6
Standard Package 4,000
Win Source Part Number 1154119-W3A45C102KAT2A
Ultra Librarian 3D Model Ultra Librarian W3A45C102KAT2A CAD Model

Description

The IPC series capacitor network is a surface mount device that contains four isolated capacitors.

  • Capacitance: 1000pF
  • Tolerance: ±10%
  • Voltage Rating: 50V
  • Temperature Coefficient: X7R
  • Package: Tape and Reel
  • Standard Package Quantity: 4000
  • Dimensions: 0.126 inches L x 0.063 inches W (3.20mm x 1.60mm)
  • Package Type: 1206 (3216 Metric)
  • ECCN: EAR99
  • REACH: Unaffected
