Same model may have multiple batches, images only for reference.

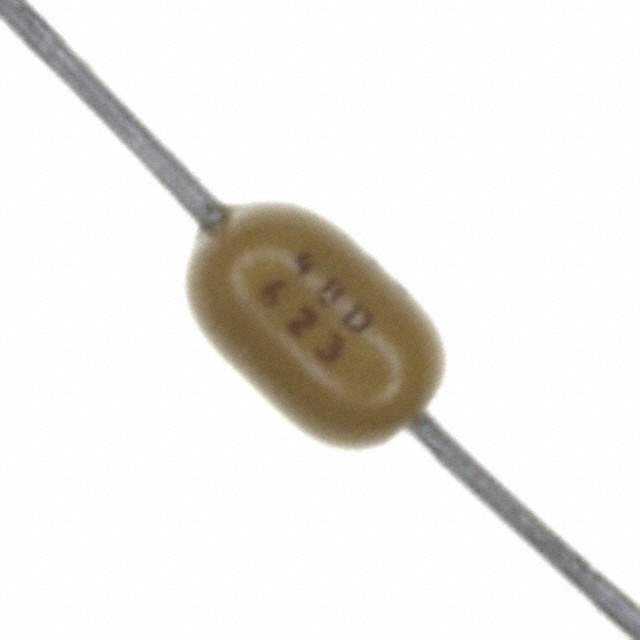

VA100048D101DL Real Image
Same model may have multiple batches, images only for reference.

VA100048D101DL

Part No VA100048D101DL
Manufacturer AVX Corp/Kyocera Corp
Catalog TVS - Varistors, MOVs
Description VARISTOR 62V 100A AXIAL / 62 V 100 A Varistor 1 Circuit Through Hole Axial
Datasheet
VA100048D101DL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr KYOCERA AVX
Series TransGuard®
Package Tape & Reel (TR),Cut Tape (CT)
Maximum AC Volts 34 V
Maximum DC Volts 48 V
Varistor Voltage (Min) 55.8 V
Varistor Voltage (Typ) 62 V
Varistor Voltage (Max) 68.2 V
Current - Surge 100 A
Energy 0.4J
Number of Circuits 1
Capacitance @ Frequency 200 pF @ 1 kHz
Temperature Range - Operating -55°C ~ 125°C (TA)
Mounting Type Through Hole
Package / Case Axial
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Other Names 478-2495-2-NDR,478-2495-1,478-2495-1-NDR,478-2495-2
Standard Package 1,000
Win Source Part Number 1170631-VA100048D101DL
Ultra Librarian 3D Model Ultra Librarian VA100048D101DL CAD Model

Description

The 1170631-VA100048D101DL is a TransGuard® varistor from KYOCERA AVX.

  • Packaging: It comes in tape and reel/cut tape packaging and has a standard package of 1,000.
  • Capacitance: The varistor has a capacitance of 200 pF @ 1 kHz
  • Varistor Voltage Range: a varistor voltage range of 55.8V to 68.2V.
  • Maximum AC Voltage: It is rated for a maximum AC voltage of 34V
  • Maximum DC Voltage: and a maximum DC voltage of 48V.
  • Mounting Type: The component is designed for through-hole mounting and has an axial package/case.
  • ECCN: The ECCN for this component is EAR99
  • HTSUS: and the HTSUS is 8533.40.4000.
  • RoHS Compliance: The varistor is RoHS compliant.
