Same model may have multiple batches, images only for reference.

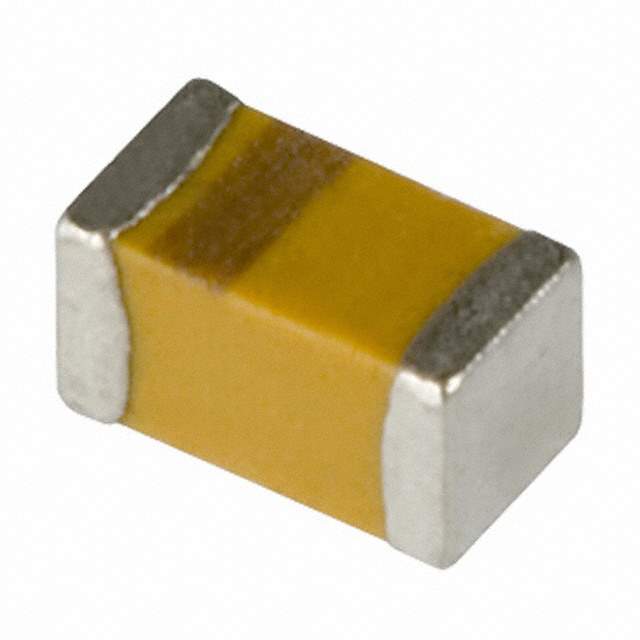

TPCL105M010R5000 Real Image
Same model may have multiple batches, images only for reference.

TPCL105M010R5000

Part No TPCL105M010R5000
Manufacturer AVX Corp/Kyocera Corp
Catalog Tantalum Capacitors
Description CAP TANT 1UF 20% 10V 0603 / 1 µF Molded Tantalum Capacitors 10 V 0603 (1608 Metric) 5Ohm @ 100kHz
Datasheet
TPCL105M010R5000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Tantalum Capacitors
Mfr KYOCERA AVX
Series TACmicrochip®, TPC
Package Tape & Reel
Capacitance 1 µF
Tolerance ±20%
Voltage - Rated 10 V
Type Molded
ESR (Equivalent Series Resistance) 5Ohm @ 100kHz
Temperature Range - Operating -55°C ~ 125°C
Lifetime @ Temp. 2000 Hrs @ 85°C
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Size / Dimension 0.063" L x 0.033" W (1.60mm x 0.85mm)
Height - Seated (Max) 0.039" (1.00mm)
Manufacturer Size Code L
Features General Purpose
Standard Package 3,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Win Source Part Number 1350700-TPCL105M010R5000
Ultra Librarian 3D Model Ultra Librarian TPCL105M010R5000 CAD Model

Description

The Kyocera AVX TACmicrochip®, TPC series Tantalum capacitor is a high-quality electronic component that features a capacitance of 1 µF and a voltage rating of 10V.

  • Series: TACmicrochip®, TPC
  • Capacitance: 1 µF
  • Voltage Rating: 10V
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Operating Temperature: -55°C to 125°C
  • Standard Package: 3,500
  • Height: 0.039" (1.00mm)
  • Capacitance Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 5Ohm @ 100kHz
  • Dimensions: 0.063" L x 0.033" W (1.60mm x 0.85mm)
