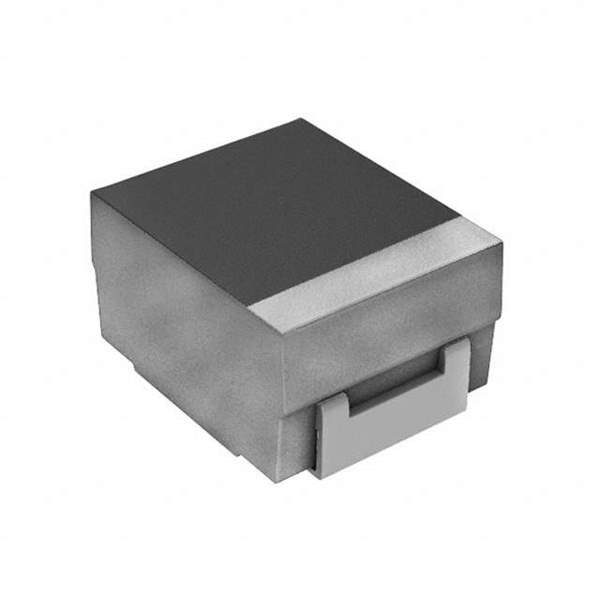

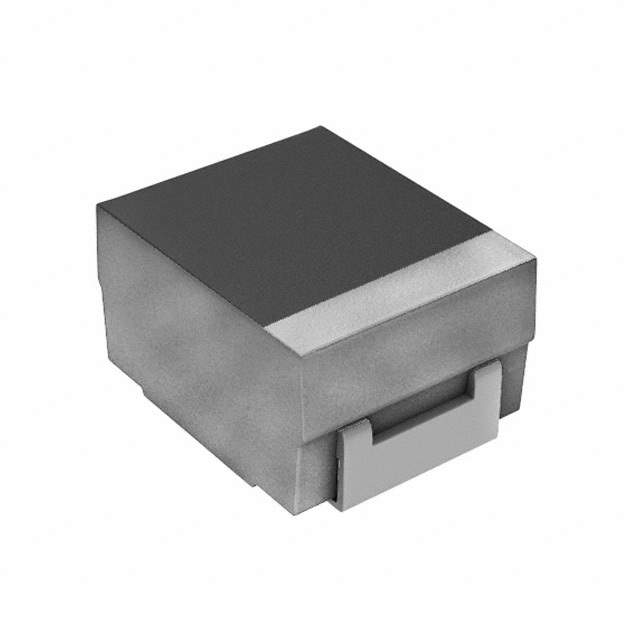

THJB226K006RJN

Part No THJB226K006RJN
Manufacturer AVX Corp/Kyocera Corp
Catalog Tantalum Capacitors
Description CAP TANT 22UF 10% 6.3V 1411 / 22 µF Molded Tantalum Capacitors 6.3 V 1411 (3528 Metric), 1210 2.5Ohm @ 100kHz
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum Capacitors
Manufacturer KYOCERA AVX
Packaging Reel - TR
Capacitance 22 µF
Tolerance ±10%
Voltage - Rated 6.3 V
Type Molded
ESR (Equivalent Series Resistance) 2.5Ohm @ 100kHz
Temperature Range - Operating -55°C ~ 175°C
Mounting Surface Mount
Case / Package 1411 (3528 Metric), 1210
Size / Dimension 0.138" L x 0.110" W (3.50mm x 2.80mm)
Height - Seated (Max) 0.083" (2.10mm)
Manufacturer Size Code B
Ratings AEC-Q200
Features Automotive
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Standard Package 2,000
Win Source Part Number 1330199-THJB226K006RJN
Ultra Librarian 3D Model Ultra Librarian THJB226K006RJN CAD Model

Description

The KYOCERA AVX 1330199-THJB226K006RJN is a tantalum capacitor designed for automotive applications.

  • Manufacturer: KYOCERA AVX
  • Capacitance: 22 µF
  • Voltage Rating: 6.3 V
  • Type: Molded
  • Size / Dimension: 0.138" L x 0.110" W (3.50mm x 2.80mm)
  • Height - Seated (Max): 0.083" (2.10mm)
  • Tolerance: ±10%
  • Lifetime @ Temp.: -55°C ~ 175°C
  • Mounting Type: Surface Mount
  • Standard Package: 2,000
  • Manufacturer Size Code: B
  • Ratings: AEC-Q200
  • ESR (Equivalent Series Resistance): 2.5Ohm @ 100kHz
  • REACH: Unaffected
  • RoHS3 Compliant: Yes
