Same model may have multiple batches, images only for reference.

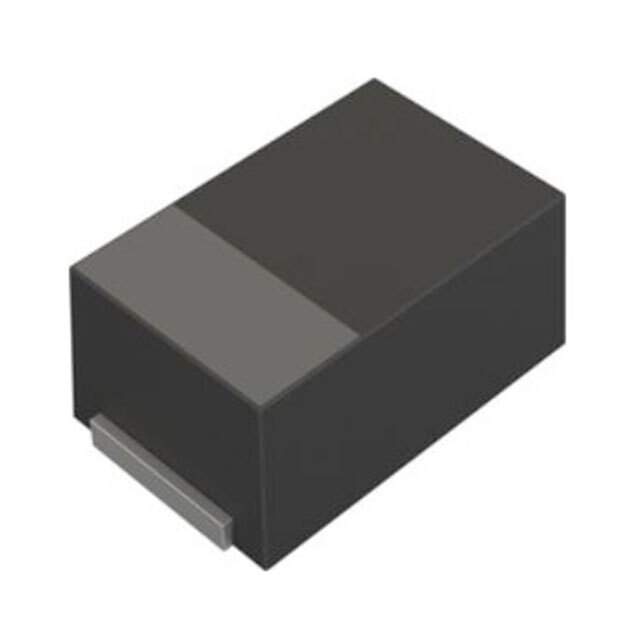

TCTPL1A226M8R Real Image
Same model may have multiple batches, images only for reference.

TCTPL1A226M8R

Part No TCTPL1A226M8R
Manufacturer AVX Corp/Kyocera Corp
Catalog Tantalum Capacitors
Description CAP TANT 22UF 20% 10V 0805 / 22 µF Molded Tantalum Capacitors 10 V 0805 (2012 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum Capacitors
Manufacturer KYOCERA AVX
Packaging Reel - TR
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 10 V
Type Molded
Temperature Range - Operating -55°C ~ 125°C
Mounting Surface Mount
Case / Package 0805 (2012 Metric)
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.039" (1.00mm)
Manufacturer Size Code PL
Features General Purpose
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Other Part Number 511-TCTPL1A226M8RCT,511-TCTPL1A226M8RTR,511-TCTPL1A226M8RCT-ND,511-TCTPL1A226M8RTR-ND,TCTPL1A226M8R-ND,478-TCTPL1A226M8RDKR,478-TCTPL1A226M8RTR,511-TCTPL1A226M8RDKR,478-TCTPL1A226M8RCT,511-TCTPL1A226M8RDKR-ND
Standard Package 3,000
Win Source Part Number 1330533-TCTPL1A226M8R
Ultra Librarian 3D Model Ultra Librarian TCTPL1A226M8R CAD Model

Description

The KYOCERA AVX TCTPL1A226M8R is a molded tantalum capacitor manufactured by KYOCERA AVX with a capacitance of 22 µF and a voltage rating of 10 V.

  • Capacitance: 22 µF
  • Voltage Rating: 10 V
  • Tolerance: ±20%
  • Use: General-purpose
  • Mounting: Surface mountable
  • Case/Package: 0805 (2012 Metric)
  • Size/Dimension: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Height: 0.039" (1.00mm)
  • Manufacturer Size Code: PL
  • Temperature Range: -55°C ~ 125°C
  • Packaging: Reel of 3,000 units
