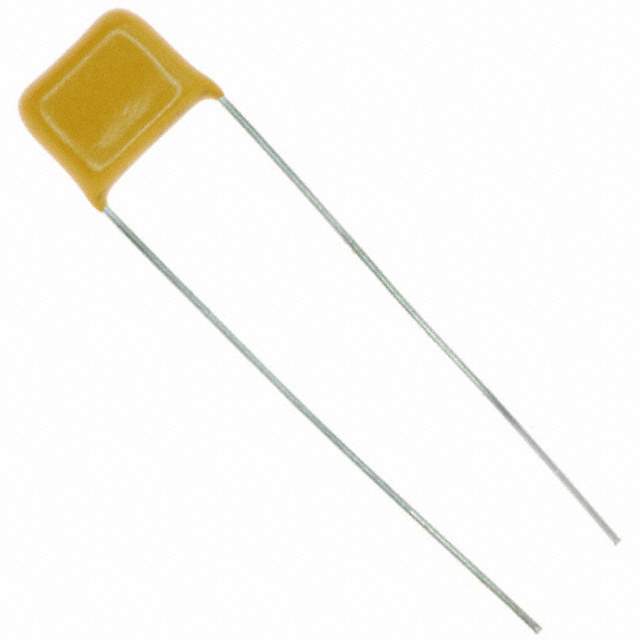

The SV14GA222JAR is a multilayer ceramic capacitor (MLCC) manufactured by AVX, now part of Kyocera AVX. These capacitors are designed for surface mount applications and are used in a wide variety of electronic circuits.

Applications:

• Bypass and decoupling in digital circuits.
• Filtering in power supplies.
• Smoothing circuits.
• RF and microwave applications.
• Automotive electronics.
• Industrial control systems.
• Consumer electronics (smartphones, tablets, etc.).

Features:

• Surface mount device (SMD).
• Multilayer ceramic construction.
• High capacitance stability over temperature.
• Low equivalent series resistance (ESR).
• Excellent high-frequency performance.
• RoHS compliant.

Benefits:

• Improved noise reduction in electronic circuits.
• Reduced board space.
• High reliability in harsh environments.
• Simplified assembly.
• Compliance with environmental regulations.

Additional Details:

The "SV" likely refers to a specific series within AVX's MLCC product line. The "14G" indicates case size and voltage rating. Refer to the datasheet. The "222" represents the capacitance code (consult the datasheet for exact capacitance value in pF). "JAR" may indicate tolerance and packaging. These capacitors are generally constructed using barium titanate dielectric material. The operating temperature range is typically -55°C to +125°C. They are suitable for reflow soldering processes. The termination is typically nickel barrier with tin plating for enhanced solderability. Refer to the AVX datasheet for details on temperature coefficient, aging rate, insulation resistance, and recommended soldering profiles. Check the case size and footprint to ensure compatibility with the PCB layout. Correct storage conditions are also described in the datasheet.
