Same model may have multiple batches, images only for reference.

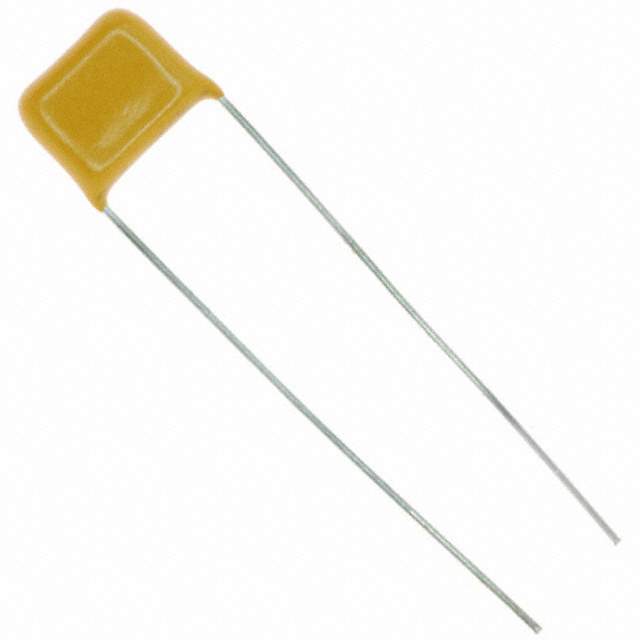

SV06HC472MAR Real Image
Same model may have multiple batches, images only for reference.

SV06HC472MAR

Part No SV06HC472MAR
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SV06HC472MAR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SV
Package Bulk
Capacitance 4700 pF
Tolerance ±20%
Voltage - Rated 3000V (3kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.551" L x 0.200" W (14.00mm x 5.08mm)
Height - Seated (Max) 0.280" (7.11mm)
Lead Spacing 0.400" (10.16mm)
Lead Style Straight
Other Names -SV06HC472MAR,478-6820
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1302918-SV06HC472MAR
Ultra Librarian 3D Model Ultra Librarian SV06HC472MAR CAD Model

Description

The 1302918-SV06HC472MAR is a ceramic capacitor from the SV series, designed for general purpose applications.

  • Capacitance: 4700 pF
  • Voltage Rating: 3000V
  • Package: Radial
  • Lead Spacing: 0.400"
  • Height (Seated): 0.280"
  • Thickness: - (not specified)
  • Temperature Coefficient: X7R
  • Tolerance: ±20%
  • Temperature Range: -55°C to 125°C
  • Manufacturer: KYOCERA AVX
  • Other Names: -SV06HC472MAR, 478-6820
