Same model may have multiple batches, images only for reference.

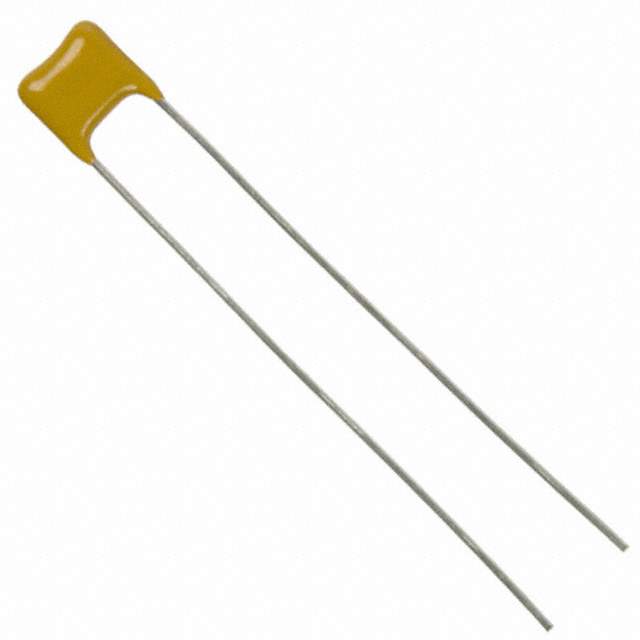

SR305C564KAR Real Image
Same model may have multiple batches, images only for reference.

SR305C564KAR

Part No SR305C564KAR
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SR305C564KAR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SkyCap® SR
Package Bulk
Capacitance 0.56 µF
Tolerance ±10%
Voltage - Rated 50V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.300" L x 0.150" W (7.62mm x 3.81mm)
Height - Seated (Max) 0.360" (9.14mm)
Lead Spacing 0.200" (5.08mm)
Lead Style Straight
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1305733-SR305C564KAR
Ultra Librarian 3D Model Ultra Librarian SR305C564KAR CAD Model

Description

The SR305C564KAR is a ceramic capacitor manufactured by KYOCERA AVX.

  • Win Source Part Number: 1305733-SR305C564KAR
  • Category: Capacitors>Ceramic Capacitors
  • Series: SkyCap® SR
  • Package Type: Bulk
  • Mounting: Through-Hole
  • Voltage Rating: 50V
  • Capacitance: 0.56 µF
  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Lead Spacing: 0.200" (5.08mm)
  • Application: General-Purpose
  • Height - Seated (Max): 0.360" (9.14mm)
  • Standard Package: 1,000
  • Package/Case Type: Radial
  • Temperature Range - Operating: -55°C ~ 125°C
  • Dimension: 0.300" L x 0.150" W (7.62mm x 3.81mm)
  • MSL Level: Not Applicable
  • REACH Status: REACH Unaffected
  • HTSUS: 8532.24.0060
