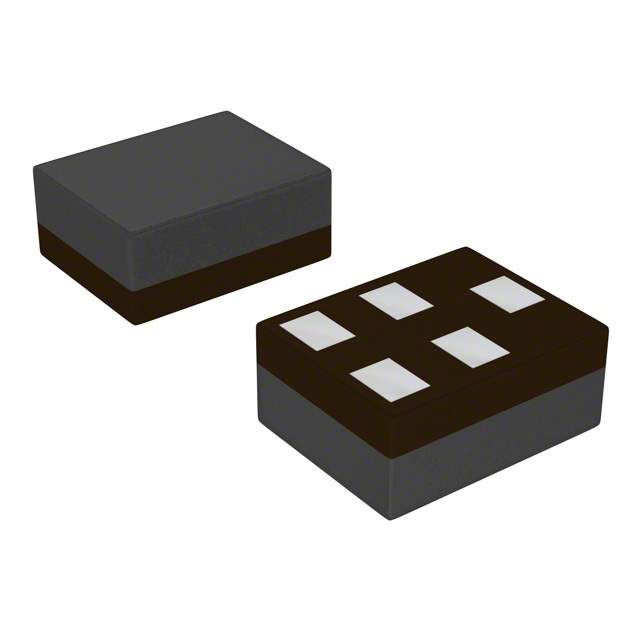

SF14-1582M5UUD2 Real Image
Same model may have multiple batches, images only for reference.

SF14-1582M5UUD2

Part No SF14-1582M5UUD2
Manufacturer AVX Corp/Kyocera Corp
Catalog SAW Filters
Description FILTER SAW 1.582GHZ 5SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer AVX Corp/Kyocera Corp
Series SF, Kyocera
Packaging Reel package
Frequency - Center 1.582GHz
Insertion Loss 1.4dB
Applications GPS
Mounting SMD
Package 5-SMD, No Lead
Height (Maximum) 0.028" (0.70mm)
Dimension 0.055" L x 0.043" W (1.40mm x 1.10mm)
Win Source Part Number 760492-SF14-1582M5UUD2
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Family Name SF14
Introduction Date January 01, 1990
ECCN EAR99
Country of Origin Japan
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian SF14-1582M5UUD2 CAD Model

Description

The SF14-1582M5UUD2 is an electronic component from AVX Corp/Kyocera Corp.

  • Package: 5-SMD, No Lead
  • Series: SF14
  • Applications: GPS
  • Insertion Loss: 1.4dB
  • Supply and Demand Status: Limited
  • Threat of Fake Components: 60%
  • Dimensions: 0.055" L x 0.043" W (1.40mm x 1.10mm)
  • Height: 0.028" (0.70mm)
