Same model may have multiple batches, images only for reference.

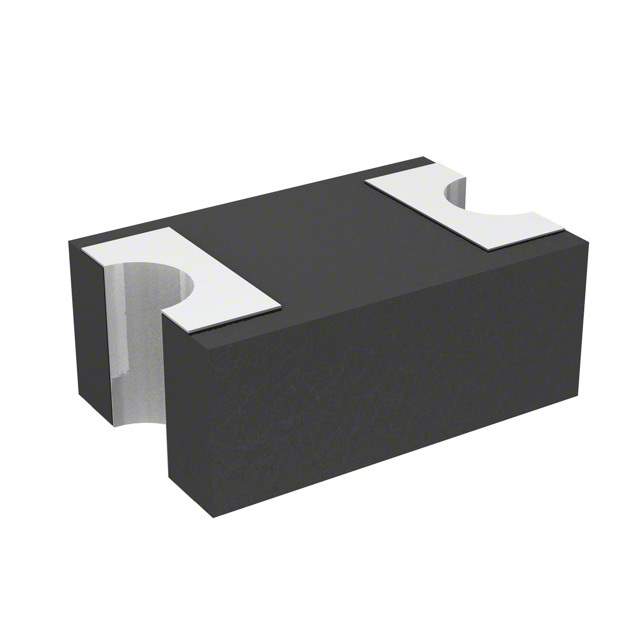

SD0805S040S0R1 Real Image
Same model may have multiple batches, images only for reference.

SD0805S040S0R1

Part No SD0805S040S0R1
Manufacturer AVX Corp/Kyocera Corp
Catalog Diodes, Rectifiers - Single
Datasheet
SD0805S040S0R1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr KYOCERA AVX
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 100mA (DC)
Voltage - Forward (Vf) (Max) @ If 500 mV @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr 30 µA @ 40 V
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805 (2012 Metric)
Operating Temperature - Junction -55°C ~ 125°C
Base Product Number SD0805S04
Other Names 478-7801-2,478-7801-1,478-7801-6
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1282483-SD0805S040S0R1
Ultra Librarian 3D Model Ultra Librarian SD0805S040S0R1 CAD Model

Description

This Schottky diode from KYOCERA AVX has a Win Source Part Number of 1282483-SD0805S040S0R1.

  • Voltage Rating: 40V
  • Maximum Forward Voltage: 500mV @ 100mA
  • Package: Tape and Reel
  • Standard Package: 3,000
  • ECCN: EAR99
  • HTSUS Code: 8541.10.0070
  • Category: Diodes - Rectifiers - Single
  • Mounting Type: SMD Technology
