Same model may have multiple batches, images only for reference.

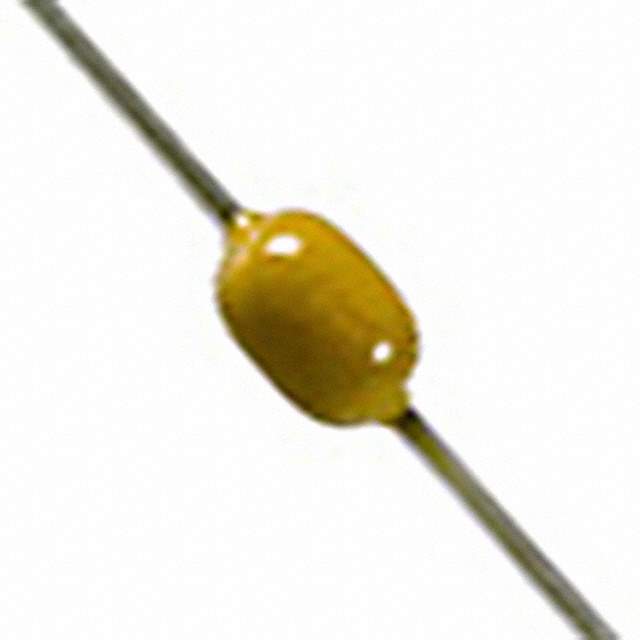

SA115C563KAA Real Image
Same model may have multiple batches, images only for reference.

SA115C563KAA

Part No SA115C563KAA
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SA115C563KAA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SpinGuard® SA
Package Tape & Reel (TR)
Capacitance 0.056 µF
Tolerance ±10%
Voltage - Rated 50V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Axial
Dimension 0.120" Dia x 0.170" L (3.05mm x 4.32mm)
Lead Style Straight
Standard Package 5,000
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0040
Win Source Part Number 1304314-SA115C563KAA
Ultra Librarian 3D Model Ultra Librarian SA115C563KAA CAD Model

Description

The KYOCERA AVX 1304314-SA115C563KAA is a ceramic capacitor with a capacitance of 0.056 µF and a voltage rating of 50V.

  • Capacitance: 0.056 µF
  • Voltage Rating: 50V
  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Series: SpinGuard® SA
  • Application: General-Purpose
  • Package: Tape and Reel
  • Standard Package: 5,000
  • Dimension: 0.120" Dia x 0.170" L (3.05mm x 4.32mm)
  • Mounting: Through-Hole
  • Operating Temperature Range: -55°C to 125°C
  • ECCN: EAR99 compliant
