Same model may have multiple batches, images only for reference.

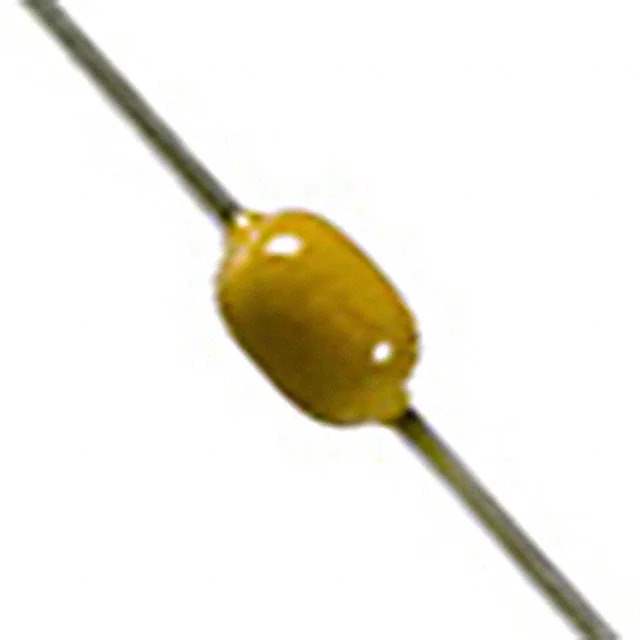

SA115C563JAR Real Image
Same model may have multiple batches, images only for reference.

SA115C563JAR

Part No SA115C563JAR
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description CAP CER 0.056UF 50V X7R AXIAL / 0.056 μF ±5% 50V Ceramic Capacitor X7R Axial
Datasheet
SA115C563JAR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr AVX Corp/Kyocera Corp
Series SpinGuard® SA
Package Tape & Reel
Product Status Active
Capacitance 0.056 µF
Tolerance ±5%
Voltage - Rated 50V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Axial
Size / Dimension 0.120" Dia x 0.170" L (3.05mm x 4.32mm)
Lead Style Straight
Standard Package 5,000 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0040
Win Source Part Number 893459-SA115C563JAR
Ultra Librarian 3D Model Ultra Librarian SA115C563JAR CAD Model

Description

The 893459-SA115C563JAR is a ceramic capacitor from AVX Corp/Kyocera Corp's SpinGuard® SA series.

  • Application: General Purpose
  • Capacitance: 0.056 µF
  • Voltage Rating: 50V
  • Tolerance: ±5%
  • Size: 0.120" diameter x 0.170" length (3.05mm x 4.32mm)
  • Package: Axial
  • Mounting: Through-Hole
  • Temperature Range: -55°C to 125°C
  • Packaging: Tape & Reel
  • Standard Package: 5,000 pieces
  • Component Status: Active
