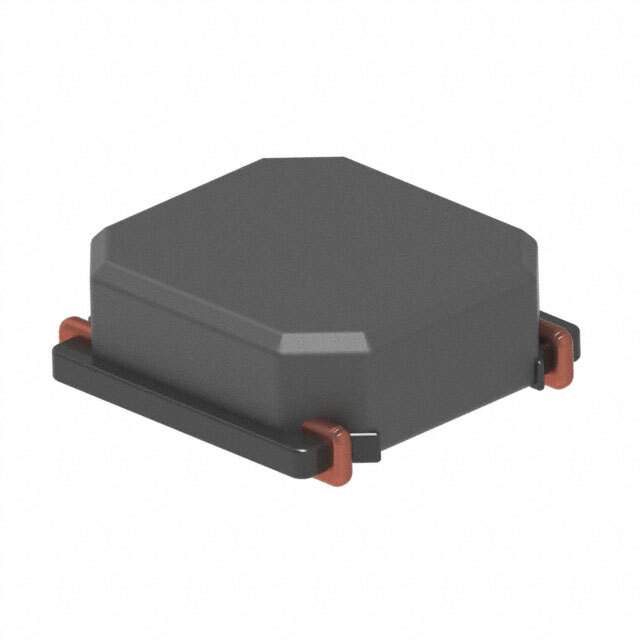

LMLP0707M1R2DTAS Real Image
Same model may have multiple batches, images only for reference.

LMLP0707M1R2DTAS

Part No LMLP0707M1R2DTAS
Manufacturer AVX Corp/Kyocera Corp
Catalog Fixed Inductors
Description FIXED IND 1.2UH 7.5A 23MOHM SMD / 1.2 µH Shielded Inductor 7.5 A 23mOhm Max Nonstandard
Datasheet
LMLP0707M1R2DTAS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr KYOCERA AVX
Series LMLP
Package Tape & Reel
Material - Core Iron Powder
Inductance 1.2 µH
Tolerance ±20%
Current Rating (Amps) 7.5 A
Current - Saturation (Isat) 13A
Shielding Shielded
DC Resistance (DCR) 23mOhm Max
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.276" L x 0.260" W (7.00mm x 6.60mm)
Height - Seated (Max) 0.079" (2.00mm)
Standard Package 1,500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1336856-LMLP0707M1R2DTAS
Ultra Librarian 3D Model Ultra Librarian LMLP0707M1R2DTAS CAD Model

Description

The Kyocera LMLP series fixed inductor is a high-quality component that is perfect for a wide range of applications. Kyocera

  • Inductance: 1.2µH
  • Current Rating: 7.5A
  • Package: Tape and Reel
  • Shielding: Shielded
  • Size/Dimension: 0.276" L x 0.260" W (7.00mm x 6.60mm)
  • Height Seated (Max): 0.079" (2.00mm)
  • Standard Package: 1,500
  • Tolerance: ±20%
  • Material-Core: Iron Powder
  • DC Resistance (DCR): 23mOhm Max
  • Temperature Range for Operating: -55°C to 155°C
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8504.50.8000
