Same model may have multiple batches, images only for reference.

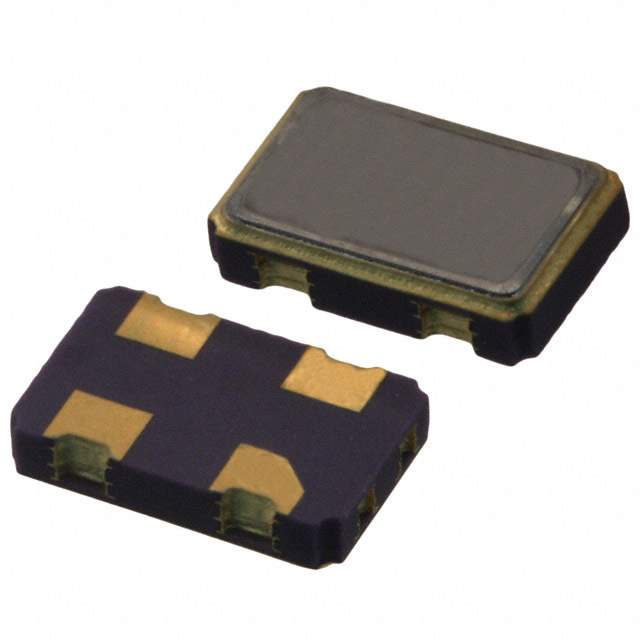

KC5032C25.0000C30E00 Real Image
Same model may have multiple batches, images only for reference.

KC5032C25.0000C30E00

Part No KC5032C25.0000C30E00
Manufacturer AVX Corp/Kyocera Corp
Catalog Oscillators
Description XTAL OSC XO 25.0000MHZ CMOS SMD / 25 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr KYOCERA AVX
Series KC5032C-C3
Package Tape & Reel
Product Status Obsolete
Base Resonator Crystal
Type XO (Standard)
Frequency 25 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -10°C ~ 70°C
Current - Supply (Max) 15mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.047" (1.20mm)
Current - Supply (Disable) (Max) 10µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 478-2098-2,478-2098-1,478-2098-6,478-2098-6-NDR,478-2098-6-ND,478-KC5032C25.0000C30E00,K30-3C0SE25.0000MR,KC5032C250000C30E00,478-2098-2-ND,478-2098-1-ND
Standard Package 1,000
Win Source Part Number 1067170-KC5032C25.0000C30E00
Ultra Librarian 3D Model Ultra Librarian KC5032C25.0000C30E00 CAD Model

Description

The KC5032C25.0000C30E00 is an oscillator component manufactured by Kyocera AVX.

  • Series: KC5032C-C3
  • Type: XO (Standard)
  • Package: Tape and reel
  • Height: 0.047 inches
  • Frequency: 25 MHz
  • Frequency Stability: ±50ppm
  • Current Supply: 15mA
  • Current Supply (Disabled): 10µA
  • Voltage Supply: 3.3V
  • Package/Case: 4-SMD, No Lead
  • Operating Temperature: -10°C to 70°C
  • Status: Obsolete
