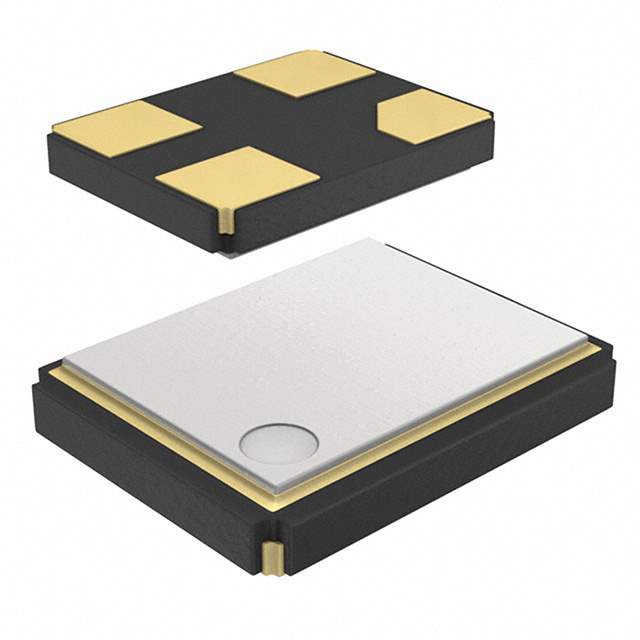

KC2520B16.0000C1GE00 Real Image
Same model may have multiple batches, images only for reference.

KC2520B16.0000C1GE00

Part No KC2520B16.0000C1GE00
Manufacturer AVX Corp/Kyocera Corp
Catalog Oscillators
Description XTAL OSC XO 16.0000MHZ CMOS SMD / 16 MHz XO (Standard) CMOS Oscillator 1.6V ~ 3.63V Standby (Power Down) 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr KYOCERA AVX
Series KC2520B-C1
Package Tape & Reel
Product Status Obsolete
Base Resonator Crystal
Type XO (Standard)
Frequency 16 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 1.6V ~ 3.63V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 3.5mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.028" (0.70mm)
Current - Supply (Disable) (Max) 10µA
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1349298-KC2520B16.0000C1GE00
Ultra Librarian 3D Model Ultra Librarian KC2520B16.0000C1GE00 CAD Model

Description

The KC2520B-C1 series XO oscillator is a crystal-based component manufactured by KYOCERA AVX.

  • Function: Standby
  • Output: CMOS
  • Frequency: 16 MHz
  • Frequency Stability: ±50ppm
  • Voltage Supply: 1.6V ~ 3.63V
  • Current Supply: 3.5mA (Max)
  • Package / Case: 4-SMD, No Lead
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel (TR)
  • Status: Obsolete
  • Current - Disable (Max): 10μA
