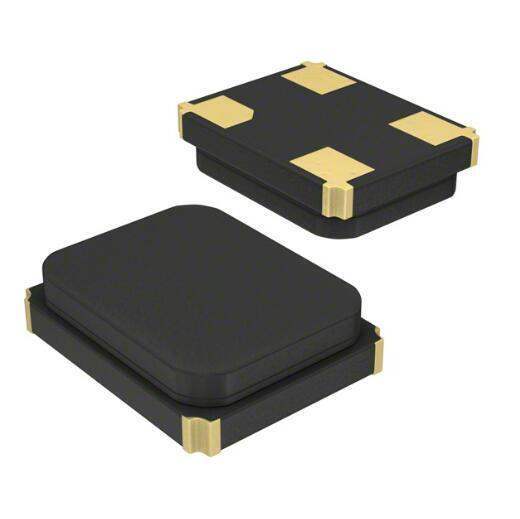

Same model may have multiple batches, images only for reference.

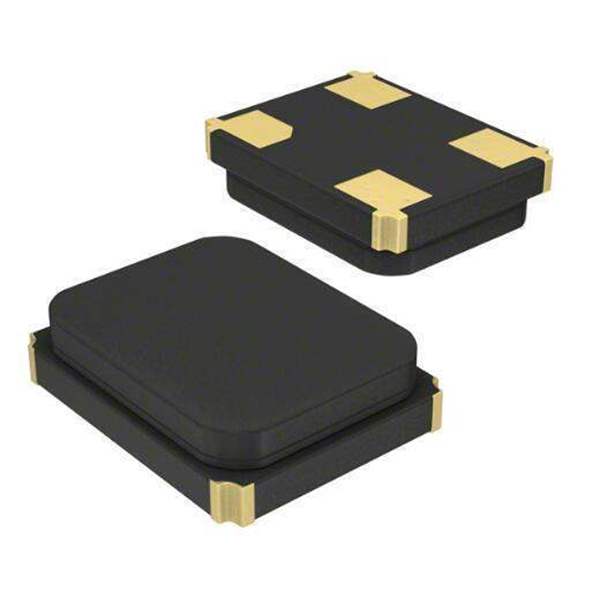

CX3225CA20000D0HSSCCKYOCERA AVX
Same model may have multiple batches, images only for reference.

CX3225CA20000D0HSSCC

Part No CX3225CA20000D0HSSCC
Manufacturer AVX Corp/Kyocera Corp
Catalog Crystals
Description CRYSTAL 20.0000MHZ 8PF SMD
Datasheet
CX3225CA20000D0HSSCC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer KYOCERA AVX
Category Crystals, Oscillators, Resonators Crystals
Part Status Active
Type MHz Crystal
Frequency 20 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Operating Temperature -40°C ~ 125°C
Win Source Part Number WS1305184-CX3225CA20000D0HSSCC
Ultra Librarian 3D Model Ultra Librarian CX3225CA20000D0HSSCC CAD Model

Description

20 MHz ±20ppm Crystal 8pF 100 Ohms 4-SMD, No Lead
