Same model may have multiple batches, images only for reference.

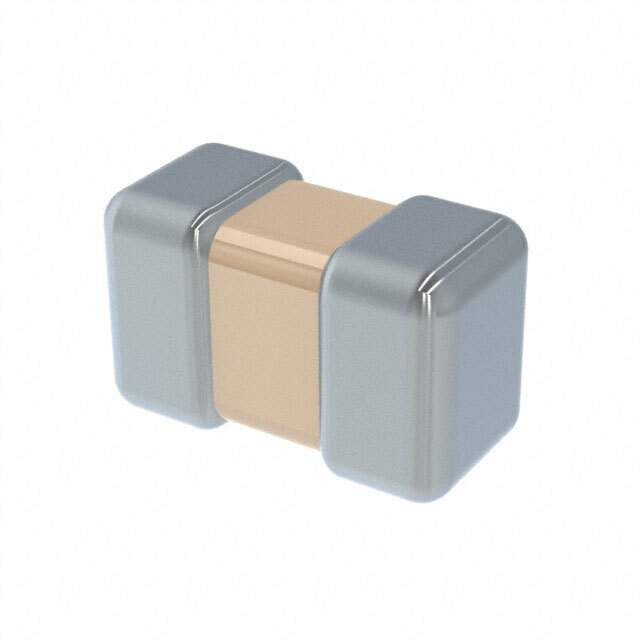

CM105X5R225M16AT Real Image
Same model may have multiple batches, images only for reference.

CM105X5R225M16AT

Part No CM105X5R225M16AT
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description CAP CER 2.2UF 16V X5R 0603 / 2.2 µF ±20% 16V Ceramic Capacitor X5R 0603 (1608 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series CM
Package Tape & Reel
Capacitance 2.2 µF
Tolerance ±20%
Voltage - Rated 16V
Temperature Coefficient X5R
Temperature Range - Operating -55°C ~ 85°C
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 0603 (1608 Metric)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Thickness (Max) 0.035" (0.90mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Names 1253-CM105X5R225M16ATTR,1253-CM105X5R225M16ATDKR-ND,478-CM105X5R225M16ATDKR,478-CM105X5R225M16ATTR,478-CM105X5R225M16AT-ND,1253-CM105X5R225M16ATTR-ND,1253-CM105X5R225M16ATCT,1253-CM105X5R225M16ATDKR,478-CM105X5R225M16AT,1253-CM105X5R225M16ATCT-ND,478-CM105X5R225M16ATCT
Standard Package 4,000
Win Source Part Number 1133797-CM105X5R225M16AT
Ultra Librarian 3D Model Ultra Librarian CM105X5R225M16AT CAD Model

Description

The KYOCERA AVX CM105X5R225M16AT is a ceramic capacitor with a capacitance of 2.2 µF and a voltage rating of 16V.

  • Capacitance: 2.2 µF
  • Voltage Rating: 16V
  • Tolerance: ±20%
  • Temperature Coefficient: X5R
  • Package/Case: 0603 (1608 Metric)
  • Operating Temperature Range: -55°C ~ 85°C
  • Dimension: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Mounting Type: Surface Mount (MLCC)
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Unaffected
