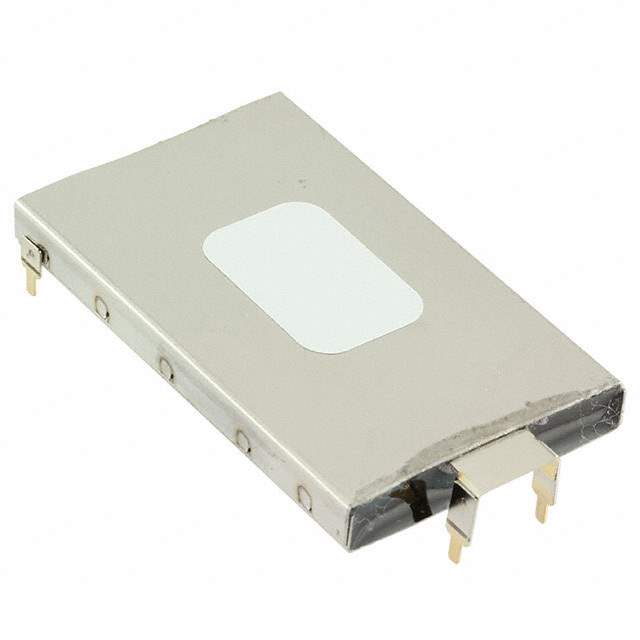

BZ125A105ZLB Real Image
Same model may have multiple batches, images only for reference.

BZ125A105ZLB

Part No BZ125A105ZLB
Manufacturer AVX Corp/Kyocera Corp
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 1F -20% +80% 5.5V SMD / 1 F (EDLC) Supercapacitor 5.5 V BZ12, 4 Lead 35mOhm 1000 Hrs @ 70°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr KYOCERA AVX
Series BestCap® BZ
Package Tray
Product Status Obsolete
Capacitance 1 F
Tolerance -20%, +80%
Voltage - Rated 5.5 V
ESR (Equivalent Series Resistance) 35mOhm
Lifetime @ Temp. 1000 Hrs @ 70°C
Termination SMD (SMT) Tabs
Mounting Type Surface Mount
Package / Case BZ12, 4 Lead
Size / Dimension 1.890" L x 1.181" W (48.00mm x 30.00mm)
Height - Seated (Max) 0.240" (6.10mm)
Temperature Range - Operating -20°C ~ 70°C
Standard Package 48
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0040
Win Source Part Number 1337629-BZ125A105ZLB
Ultra Librarian 3D Model Ultra Librarian BZ125A105ZLB CAD Model

Description

The 1337629-BZ125A105ZLB is an electric double layer capacitor from KYOCERA AVX.

  • Series: BestCap® BZ
  • Capacitance: 1 F
  • Package: Tray
  • Size: 1.890 inches L x 1.181 inches W (48.00mm x 30.00mm)
  • Height: 0.240 inches (6.10mm) Max
  • Mounting Type: Surface Mount
  • ESR: 35mOhm
  • Voltage Rating: 5.5V
  • Lifetime: 1000 hours @ 70°C
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8532.29.0040
  • REACH: Unaffected
