Same model may have multiple batches, images only for reference.

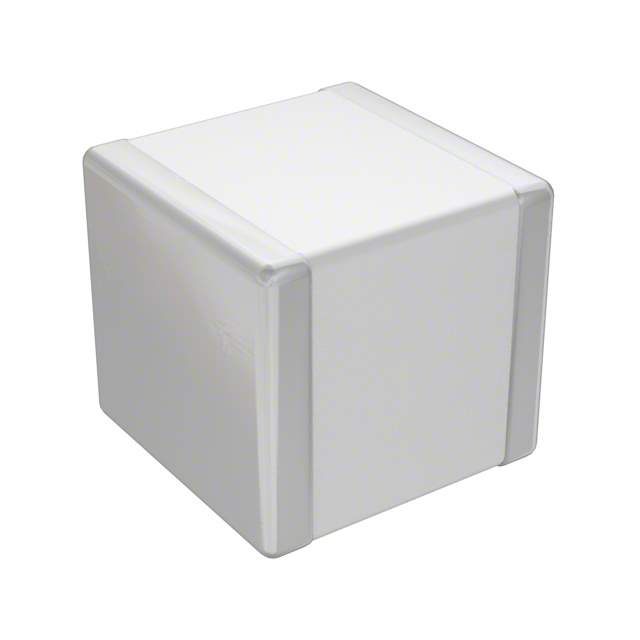

AQ147M4R7BATME Real Image
Same model may have multiple batches, images only for reference.

AQ147M4R7BATME

Part No AQ147M4R7BATME
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description CAP CER 4.7PF 500V 1111 / 4.7 pF ±0.1pF 500V Ceramic Capacitor M 1111 (2828 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series AQ
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Capacitance 4.7 pF
Tolerance ±0.1pF
Voltage - Rated 500V
Temperature Coefficient M
Temperature Range - Operating -55°C ~ 175°C
Features High Q, Low Loss
Applications RF, Microwave, High Frequency
Mounting Type Surface Mount, MLCC
Package / Case 1111 (2828 Metric)
Dimension 0.110" L x 0.110" W (2.79mm x 2.79mm)
Thickness (Max) 0.102" (2.59mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Names AQ147M4R7BATME/2K,AQ147M4R7BATME\\2K,478-6780-2,AQ147M4R7BATME-ND,-AQ147M4R7BATME,478-6780-1
Standard Package 2,000
Win Source Part Number 973978-AQ147M4R7BATME
Ultra Librarian 3D Model Ultra Librarian AQ147M4R7BATME CAD Model

Description

The 973978-AQ147M4R7BATME is a high-Q, low-loss ceramic capacitor from Kyocera AVX.

  • Capacitance: 4.7pF
  • Voltage Rating: 500V
  • Tolerance: ±0.1pF
  • Temperature Coefficient: M
  • Application: RF, microwave, and high-frequency applications
  • Packaging: tape and reel format
  • Package Size: 1111 (2828 Metric)
  • Thickness: 0.102" (2.59mm)
  • Operating Temperature Range: -55°C to 175°C
  • RoHS: compliant
  • REACH: unaffected
  • ECCN: EAR99
  • Standard Package: 2,000
