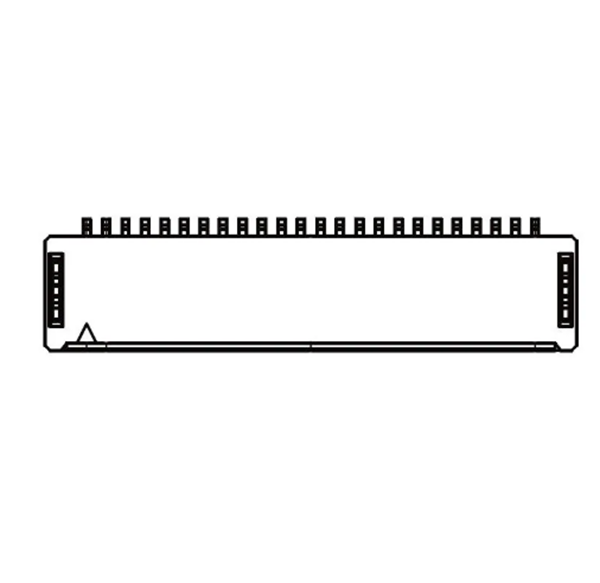

046824605000846+KYOCERA AVX
Same model may have multiple batches, images only for reference.

046824605000846+

Part No 046824605000846+
Manufacturer AVX Corp/Kyocera Corp
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 5POS 0.4MM R/A
Datasheet
046824605000846+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer KYOCERA AVX
Part Status Active
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Pitch 0.016" (0.40mm)
Height Above Board 0.037" (0.95mm)
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Thermoplastic
Features Solder Retention
Ultra Librarian 3D Model Ultra Librarian 046824605000846+ CAD Model

Description

5 Position FPC Connector Contacts, Top and Bottom 0.016" (0.40mm) Surface Mount, Right Angle
