Same model may have multiple batches, images only for reference.

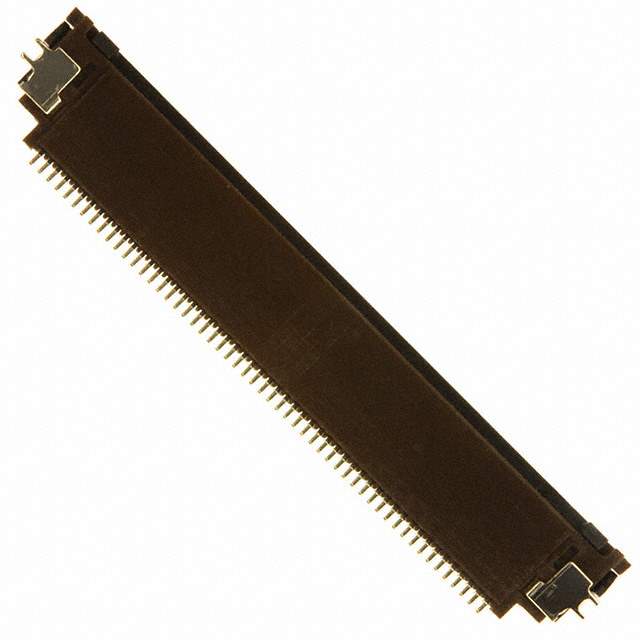

046240054005800+ Real Image
Same model may have multiple batches, images only for reference.

046240054005800+

Part No 046240054005800+
Manufacturer AVX Corp/Kyocera Corp
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 54POS 0.50MM R/A
Datasheet
046240054005800+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer AVX Corp/Kyocera Corp
Packaging Reel - TR
Status Active
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 54
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Finish Tin Copper
Housing Material Plastic
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C to 85°C
Current Rating 0.4A
Win Source Part Number 119769-046240054005800+
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 046240054005800+ CAD Model

Description

Description

The 046240054005800+ component stands out for its exceptional durability and operational excellence in diverse environments.

Features and Benefits

  • Durable Construction: Built to last in challenging conditions.
  • Efficient Performance: Optimizes functionality with minimal energy use.
  • Space-Saving Design: Convenient for compact electronic systems.

Applications

  • Renewable Energy Systems
  • Automated Controls
  • Consumer Electronics
  • Advanced Computing Systems

Additional Details: This component is perfect for innovative projects that demand both reliability and efficiency.
